CPP Front Disc Brake Kit with C7 Hubs, 2 Inch Drop Spindles, 1955–57 Chevy Full Size, Black Calipers
Part #
Product Takes 7 Days to Ship5557SWBK-DC7B
$979.00

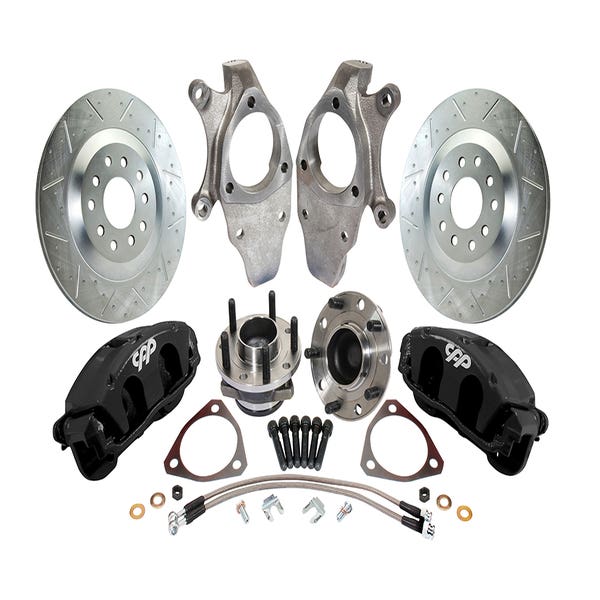

Front Disc Brake Kit for 1955–57 Chevy Full Size Applications Featuring 2 Inch Drop Spindles, C7 Sealed Hubs, 13 Inch Drilled and Slotted Rotors, and C5 Twin Piston Black Calipers
The CPP front disc brake kit, part number 5557SWBK-DC7B, is designed for 1955–57 Chevy full size vehicles and features a precision bolt on spindle with a 2 inch drop to lower ride height while maintaining factory suspension geometry. This design improves stance without introducing steering or alignment issues.
This kit includes 13 inch drilled and slotted rotors paired with C5 twin piston calipers finished in black, along with stainless steel brake hoses for consistent braking performance and pedal feel. The system utilizes a Corvette style sealed hub assembly based on a C7 bearing design with a double row ball bearing arrangement to reduce flex at the spindle pin and improve caliper stability under load.
The C7 hub features a 5 x 4.75 bolt pattern with a 10 hole layout, supplied with 7/16 x 20 studs and provisions for optional 1/2 x 20 wheel studs. A minimum 17 inch wheel is required. This brake kit is compatible with 1955–57 Chevy full size applications.
This kit includes 13 inch drilled and slotted rotors paired with C5 twin piston calipers finished in black, along with stainless steel brake hoses for consistent braking performance and pedal feel. The system utilizes a Corvette style sealed hub assembly based on a C7 bearing design with a double row ball bearing arrangement to reduce flex at the spindle pin and improve caliper stability under load.
The C7 hub features a 5 x 4.75 bolt pattern with a 10 hole layout, supplied with 7/16 x 20 studs and provisions for optional 1/2 x 20 wheel studs. A minimum 17 inch wheel is required. This brake kit is compatible with 1955–57 Chevy full size applications.
| Product Name | CPP Front Disc Brake Kit with C7 Hubs, 2 Inch Drop Spindles, 1955–57 Chevy Full Size, Black Calipers | SKU | 5557SWBK-DC7B |
| Bolt Pattern | 5x4.75 1/2x20 Threaded Holes, 5x4.75 with 7/16x20 Studs | Brake Hose Included | Yes |
| Front Brake Hose Type | Stainless Steel | Front Caliper Finish | Black Powder Coated |
| Front Caliper Material | Aluminum | Front Caliper Piston Qty | 2 |
| Rotor Hub Type | C7 Hub with Slip on Rotor | Rotor Style | Blue Zinc, Cross-Drilled, Gas Slotted, Vented |
| Front Spindle Included | Yes | Spindle Type | Corvette Style Drop Spindle |
| Spindle Finish | None | Spindle Material | Ductile Iron |
| Spindle Drop Height | 2 | Front Caliper Piston Diameter | 42 |
| Spindles Included | Yes | Prop65 | Yes |
| Brand | CPP Corvette Style Series | Product Location | Front |
| Front Rotor Diameter | 13 |
Write Your Own Review
Customer Questions
This kit includes:
-
Fixed
-
P/N: TECH
- Description: Brake Trouble Shooting Guide
- Quantity: 1
-
P/N: BHK-S10
- Description: 16in Front Brake Hose Kit, 10mm Banjo 3/8x24, Stainless Steel
- Quantity: 1
-
P/N: 743334U-B
- Description: Black C5 Loaded Caliper - Left and Right Hand Side, Sold as a Pair
- Quantity: 2
-
P/N: 35041-R1
- Description: CPPs Corvette Style Hubs
- Quantity: 2
-
P/N: GXZ-31877
- Description: Front Rotors zinc plated 13in Corvette Drilled/Slotted, 5x 4.75 and 5 x 4.5 Corvette Style Rotor
- Quantity: 2
-
P/N: C2-8F
- Description: 7/16in-20 Hex Nut G8
- Quantity: 4
-
P/N: C2-8S
- Description: 7/16in Sae Flat Washer G8
- Quantity: 4
-
P/N: H-30014
- Description: C5 Corvette Spindle Hardware Kit (Hub)
- Quantity: 1
-
P/N: H-30019
- Description: Hardware Kit For 30019
- Quantity: 1
-
P/N: 30019
- Description: Corvette Style 2in Drop Spindles (Pr)
- Quantity: 1
