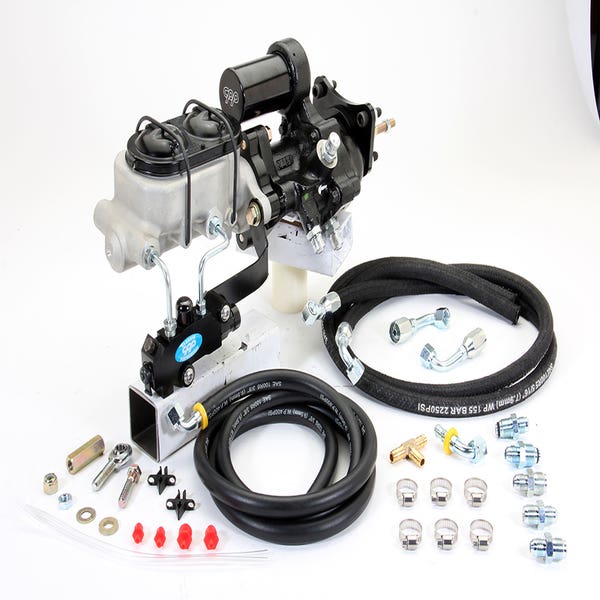

Street Beast Complete HydraStop Kit, Clocked 90°, Side Mounted Valve, 1955-64 Chevy Full Size
Part #
5564HBK-SB90-S
In Stock
$1,049.00
1955-64 Chevy Full Size, Big Block or LS or Column Shift, Includes HydraStop, Rubber Hose Kit, Master & GM Style Valve W/ Black Accumulator Cover
5564HBK-SB90-S: 1955-1964 Chevy Full Size - Street Beast Complete HydraStop Kit (Clocked 90°, Side Mounted Valve)
This CPP HydraStop Complete Kit is designed for 1955-1964 Chevy Full Size vehicles with a big block, LS engine, or column shift. It upgrades your braking system to modern hydraulic assist technology, delivering up to 1800 psi at the wheels for superior braking performance. The system works off your power steering pump and comes with a direct bolt-in installation, including all necessary components: the HydraStop hydraulic brake assist unit, rubber high-pressure hoses, a heavy-duty power steering return line, and all required hardware.
The "Street Beast" package includes a clocked 90° master cylinder, GM-style side-mounted valve, and a black accumulator cover. This kit combines exceptional braking power with a clean, efficient design for your classic Chevy Full Size vehicle.
This CPP HydraStop Complete Kit is designed for 1955-1964 Chevy Full Size vehicles with a big block, LS engine, or column shift. It upgrades your braking system to modern hydraulic assist technology, delivering up to 1800 psi at the wheels for superior braking performance. The system works off your power steering pump and comes with a direct bolt-in installation, including all necessary components: the HydraStop hydraulic brake assist unit, rubber high-pressure hoses, a heavy-duty power steering return line, and all required hardware.
The "Street Beast" package includes a clocked 90° master cylinder, GM-style side-mounted valve, and a black accumulator cover. This kit combines exceptional braking power with a clean, efficient design for your classic Chevy Full Size vehicle.
| Product Name | Street Beast Complete HydraStop Kit, Clocked 90°, Side Mounted Valve, 1955-64 Chevy Full Size | SKU | 5564HBK-SB90-S |
| Master Cylinder Finish | None | Master Cylinder Type | CPP Left Side Ports |
| Master Cylinder Lid Style | Black Corvette Style | Proportioning Valve Type | Side Mount Left Hand |
| Bracket And Lines Included | Yes | Proportioning Valve Included | Yes |
| Brake Light Switch Included | No | Warranty | Yes |
| Brand | CPP HydraStop |
Write Your Own Review
Customer Questions
Kit Includes:
- P/N: H-5564HB-L90
Description:
Quantity: 1- - P/N: PV-24BBH
Description: 1/2x20 to front M/C, 7/16x24 to Rear M/C, 3/8x24 Out to Front (2 ports), 9/16x18 Out to Rear Port
Quantity: 1- - P/N: BP5100
Description: CPP In White on the End of the Cover
Quantity: 1- - P/N: 130278-B
Description:
Quantity: 1- - P/N: HAHK-R
Description: Two 4 Foot High Pressure Hoses, 6.5 Feet Return Lines, Gear Box and Pump Fittings, All Hose Ends & Tee Barb, Works with SB, BB and LS Engine
Quantity: 1- - P/N: K100083-B
Description:
Quantity: 1- - P/N: CPP-UHBA2
Description: Hydraulic Brake Assist Kit
Quantity: 1- - P/N: TECH
Description: Brake Trouble Shooting Guide
Quantity: 1- - P/N: M-C118-APBLF
Description: 1 1/8" Master with 1/2 x 20 and 9/16 x 18 Ports, Ports on Left/Driver's Side
Quantity: 1-
