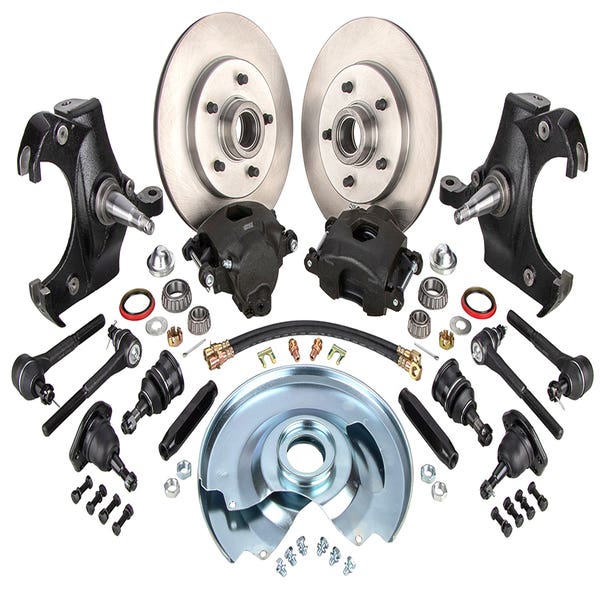

Front Disc Brake Kit w/ 2.5" Drop Spindles w/ Ball Joints, Tie Rods & Sleeves, 1963-70 C10
Part #
6370SWBK-5D
In Stock
$825.00
1963-1970 Chevy 1/2 Ton Truck, 5x5 12" Rotor, Single Piston
Upgrade your classic Chevy 1/2 Ton Truck with the CPP 12" Front Disc Brake Kit, specifically designed for 1963-1970 models. This comprehensive kit features 2.5" drop spindles, providing an ideal stance and improved handling. Unlike the stock setup, this kit includes new ball joints, tie rods, and billet sleeves, ensuring optimal performance and reliability. The kit comes with all necessary components for a seamless installation, including 12" rotors, calipers, bearings, seals, spindle nuts, dust caps, banjo bolts, and brake hoses. The disc brake kit moves the wheels out 9/16th per side from the original drum brake offset and uses a 5 x 5 bolt pattern.
| Product Name | Front Disc Brake Kit w/ 2.5" Drop Spindles w/ Ball Joints, Tie Rods & Sleeves, 1963-70 C10 | SKU | 6370SWBK-5D |
| Bolt Pattern | 5x5 | Front Brake Hose Type | Rubber |
| Front Caliper Finish | Natural | Front Caliper Material | Cast iron |
| Front Caliper Piston Qty | 1 | Rotor Hub Type | One Piece Rotor |
| Rotor Style | Plain, Vented | Front Spindle Included | Yes |
| Spindle Type | Drop Spindle | Spindle Material | Ductile Iron |
| Spindle Drop Height | 2.5 | Front Caliper Piston Diameter | 2.95 |
| Spindles Included | Yes | Prop65 | Yes |
| Brand | CPP | Front Rotor Diameter | 12 |
Write Your Own Review
Customer Questions
There are no tech documents.
Kit Includes:
- P/N: 4035
Description: 1971-1978 Chevy C10 Truck, 7/16" x20 Banjo Bolt, Sold Individually
Quantity: 1- - P/N: 4036
Description: 1971-1978 Chevy C10 Truck, 7/16" x20 Banjo Bolt, Sold Individually
Quantity: 1- - P/N: FA903
Description: 1973-1987 Chevy 1/2 Ton Truck, C10, Upper
Quantity: 2- - P/N: CP4SC-SAB
Description: Used to Connect a 63-70 Tie Rod end and a 73-87 Tied Rod end, this Allows a 73-87 Spindle to be used on a 63-70 C10.
Quantity: 1- - P/N: CPDS-10
Description: 1963-72 Chevy C10 Truck 1/2 Ton
Quantity: 1- - P/N: LM12649
Description: A-3 Bearing Only, Sold as Each
Quantity: 2- - P/N: ES350L
Description: 65-70 C10, 68-74 Nova, 67-69 Camaro, 65-70 Chevy Full Size 5/8-18 7.19" Left Outer
Quantity: 2- - P/N: LM48548
Description: A-5 Bearing Only, Sold as Each
Quantity: 2- - P/N: BHK-R7-38
Description: 7/16" bolt, 3/8"-24, Rubber Material, Sold as a Kit
Quantity: 1- - P/N: CPPHWF-B
Description: Plain Finish
Quantity: 1- - P/N: DNA
Description: Parts Come Packaged Separately
Quantity: 1- - P/N: FA1014
Description: 1971-1987 Chevy 1/2 Ton Truck, C10, Lower
Quantity: 2- - P/N: TECH
Description: Brake Trouble Shooting Guide
Quantity: 1- - P/N: 8871
Description: Grease Seal, Sold as Each
Quantity: 2- - P/N: CP4S4
Description: 1973-87 C10 Works With Stock 1971-87 1.25 Thick C10 Brakes and CPP's CP4CK-5 and CP4CK-6, -.250 Offset
Quantity: 1- - P/N: ES409R
Description: 73-87 Chevy Truck Outer Tie Rod End (Ea), Used in some CPP Square Body Brake Conversions
Quantity: 2- - P/N: AR-31876
Description: 5 x 5 Front Rotor used in the 6370SWBK Series 12" CPP C10 Front Disc Kits, Works with CP4S and CP30106- Series CPP Spindles
Quantity: 2-
