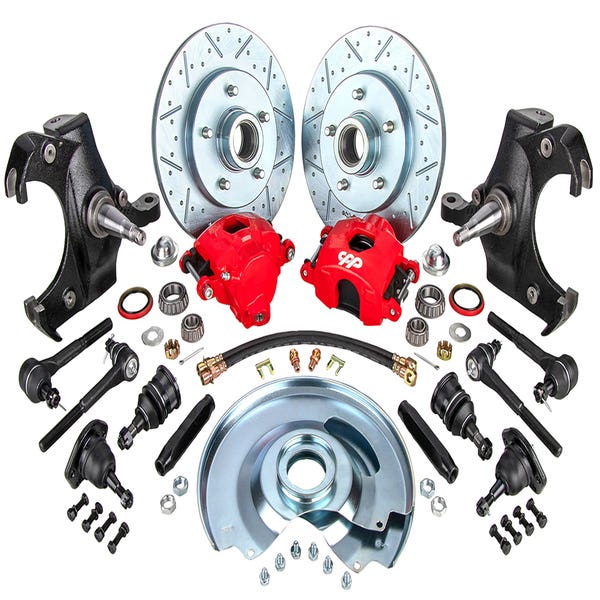

Front Disc Brake Kit w/ 2.5" Drop Spindles w/ Ball Joints, Tie Rods & Sleeves & Upgraded Rotors/Red Calipers, 1963-70 C10
Part #
6370SWBK-5DUG-R
In Stock
$980.00
1963-1970 Chevy 1/2 Ton Truck, 5x5 12" Rotor, Single Piston, Drilled & Slotted, Stainless Hoses, Red Calipers
This kit is a must-have for anyone wanting to upgrade their classic ride and use as a daily driver. In addition to improved braking performance, the 2.5" Drop Spindle reduces wheel offset for a superior stance and improved overall balance and steering feel. The heavy-duty 12" Rotor ensures the maximum amount of braking available, while the Red Calipers allow for better thermal distribution and heat conduction. Single Piston provides exceptional control, and the Drilled & Slotted features allows for superior heat dissipation for a smooth ride. The Stainless Hoses look great, and help keep bake fluid clean for longer. The Tie Rods & Sleeves feature is designed for improved accuracy and smoother steering.
Complete your ride with the 1963-1970 Chevy 1/2" Ton Truck Front Disc Brake Kit, Part# 6370SWBK-5DUG-R. This kit includes everything you need for superior braking, improved ride quality, and overall better performance. Enjoy a faster, more-controlled ride and get the job done quickly and safely.
Complete your ride with the 1963-1970 Chevy 1/2" Ton Truck Front Disc Brake Kit, Part# 6370SWBK-5DUG-R. This kit includes everything you need for superior braking, improved ride quality, and overall better performance. Enjoy a faster, more-controlled ride and get the job done quickly and safely.
| Product Name | Front Disc Brake Kit w/ 2.5" Drop Spindles w/ Ball Joints, Tie Rods & Sleeves & Upgraded Rotors/Red Calipers, 1963-70 C10 | SKU | 6370SWBK-5DUG-R |
| Bolt Pattern | 5x5 | Front Brake Hose Type | Stainless Steel |
| Front Caliper Finish | Red Powder Coated | Front Caliper Material | Cast iron |
| Front Caliper Piston Qty | 1 | Rotor Hub Type | One Piece Rotor |
| Rotor Style | Cross-Drilled, Gas Slotted, Vented | Front Spindle Included | Yes |
| Spindle Type | Drop Spindle | Spindle Material | Ductile Iron |
| Spindle Drop Height | 2.5 | Front Caliper Piston Diameter | 2.95 |
| Spindles Included | Yes | Prop65 | Yes |
| Brand | CPP | Front Rotor Diameter | 12 |
Write Your Own Review
Customer Questions
There are no tech documents.
Kit Includes:
- P/N: FA903
Description: 1973-1987 Chevy 1/2 Ton Truck, C10, Upper
Quantity: 2- - P/N: CP4SC-SAB
Description: Used to Connect a 63-70 Tie Rod end and a 73-87 Tied Rod end, this Allows a 73-87 Spindle to be used on a 63-70 C10.
Quantity: 1- - P/N: CPDS-10
Description: 1963-72 Chevy C10 Truck 1/2 Ton
Quantity: 1- - P/N: LM12649
Description: A-3 Bearing Only, Sold as Each
Quantity: 2- - P/N: ES350L
Description: 65-70 C10, 68-74 Nova, 67-69 Camaro, 65-70 Chevy Full Size 5/8-18 7.19" Left Outer
Quantity: 2- - P/N: LM48548
Description: A-5 Bearing Only, Sold as Each
Quantity: 2- - P/N: CPPHWF-B
Description: Plain Finish
Quantity: 1- - P/N: 4035-R
Description: 1971-1978 Chevy C10 Truck, 7/16" x20 Banjo Bolt, Sold Individually
Quantity: 1- - P/N: 4036-R
Description: 1971-1978 Chevy C10 Truck, 7/16" x20 Banjo Bolt, Sold Individually
Quantity: 1- - P/N: DNA
Description: Parts Come Packaged Separately
Quantity: 1- - P/N: FA1014
Description: 1971-1987 Chevy 1/2 Ton Truck, C10, Lower
Quantity: 2- - P/N: TECH
Description: Brake Trouble Shooting Guide
Quantity: 1- - P/N: 8871
Description: Grease Seal, Sold as Each
Quantity: 2- - P/N: CP4S4
Description: 1973-87 C10 Works With Stock 1971-87 1.25 Thick C10 Brakes and CPP's CP4CK-5 and CP4CK-6, -.250 Offset
Quantity: 1- - P/N: BHK-S7-38
Description: 7/16" bolt, 3/8"-24, Stainless Steel Material, Sold as a Kit
Quantity: 1- - P/N: ES409R
Description: 73-87 Chevy Truck Outer Tie Rod End (Ea), Used in some CPP Square Body Brake Conversions
Quantity: 2- - P/N: GXZ-31876
Description: 12" Front C10 Rotor, Left and Right Hand Side, Vented, Cross Drilled and Gas Slotted, Blue Zinc, 5 x 5 Front Rotor used in the 6370SWBK Series 12" CPP C10 Front Disc Kits, Works with CP4S and CP30106- Series CPP Spindles
Quantity: 2-
