CPP X-10 Modular 13in Front Disc Kit, 1963-70, 5x5, Black Calipers

CPP high-performance automotive parts for classic cars
Be the first to review this product
Part #
6370SWBK-X10-5
Product Takes 7 Days to Ship
$1,239.00
1963-70 C10, Drilled, slotted & zinc rotors, 52mm twin-piston front calipers, stainless hoses
Contact Support . Terms & Conditions
Add to Compare
Prop 65 warning
Upgrade the braking performance on your 1963-70 C10 with CPP’s X-10 Modular 13" Front Disc Kit. Engineered for 5x5 trucks, this kit includes CPP’s sealed bearing Xtreme Drop Spindle to eliminate axle pin flex, 13" drilled and slotted zinc-coated rotors, and PBR C15 calipers with twin 52mm pistons. Stainless steel hoses and custom brackets ensure reliable performance and clean routing. Designed for use with 17" or larger wheels.
More Information
Product Name CPP X-10 Modular 13in Front Disc Kit, 1963-70, 5x5, Black Calipers SKU 6370SWBK-X10-5
Bolt Pattern 5x5 Brake Hose Included Yes
Front Brake Hose Type Rubber Front Brake Hoses Included Yes
Front Caliper Finish Black Powder Coated Front Caliper Material Cast iron
Front Caliper Piston Qty 2 Front Calipers Included Yes
Rotor Hub Type X-10 Sealed Bearing and Slip on Rotor Rotor Style Blue Zinc, Cross-Drilled, Gas Slotted, Vented
Front Rotors Included Yes Front Spindle Included Yes
Spindle Type X-10 Modular Drop Spindle Rear Calipers Included No
Rear Rotors Included No Spindle Finish None
Spindle Material Ductile Iron Spindle Drop Height 2.5
Front Caliper Piston Diameter 52 Spindles Included Yes
Prop65 Yes Brand CPP
Product Location Front Front Rotor Diameter 13
Write Your Own Review
Only registered users can write reviews. Please Sign in or create an account
Customer Questions
No Questions
Did you find what you were looking for?

There are no tech documents.

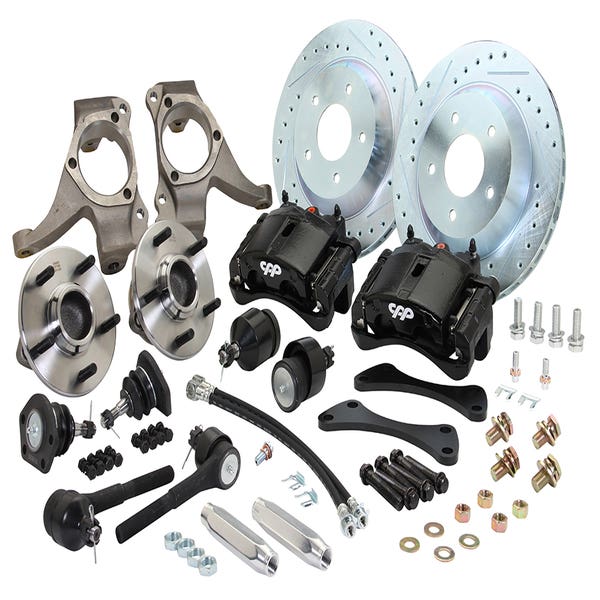

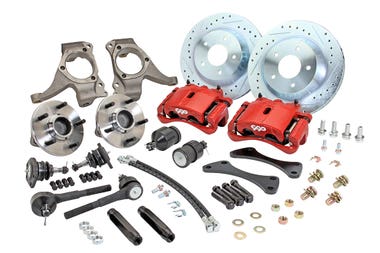

This kit includes:

  1. Fixed

  2. P/N: FA903

    • Description: Upper Ball Joint for 1973-1987 Chevy 1/2 Ton Truck, C10, Upper
    • Quantity: 2

  3. P/N: FA1014

    • Description: Lower Ball Joint for a 1971-1987 Chevy 1/2 Ton Truck C10
    • Quantity: 2

  4. P/N: ES409R

    • Description: Tie Rod End for 73-87 Chevy Truck Outer Tie Rod End
    • Quantity: 2

  5. P/N: CP4SC-SAP

    • Description: Aluminum Tie Rod Sleeves Polished to connect a 63-70 Tie Rod end to a 73-87 Tie Rod End
    • Quantity: 1

  6. P/N: CP30021

    • Description: 73-87 X-10 2.5in Modular Drop Spindles, Pair
    • Quantity: 1

  7. P/N: GXZ-31884

    • Description: Front Rotors zinc plated 13in Corvette Drilled/Slotted, 5 x 5 and 5 x 5.5 CPP Big Brake Rotor
    • Quantity: 2

  8. P/N: BHK-R10

    • Description: 16in Front Brake Hose Kit, 10mm Banjo, 3/8in-24, Rubber
    • Quantity: 1

  9. P/N: 35033

    • Description: X10 Wheel Hub Assembly, 5x5 Sealed Bearing, 1/2in-20 Bolts, Sold Individually
    • Quantity: 2

  10. P/N: 47084

    • Description: M14 1.5 X 70Mm Hex Head Flange Bolt Grade 8 Black Zinc
    • Quantity: 6

  11. P/N: DNA

    • Description: Parts Come Packaged Separately - Not Assembled
    • Quantity: 1

  12. P/N: K100026

    • Description: 13in Brake Caliper Bracket & Hardware Kit
    • Quantity: 1

  13. P/N: BBCFR13-B

    • Description: Front 13in Big Brake Caliper Left Hand Or Right Hand Black
    • Quantity: 2
