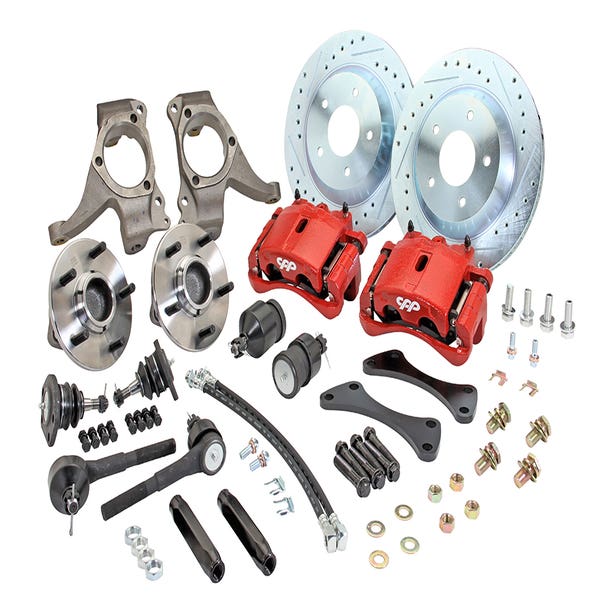

1963-70 C10 5 Lug 13" Big Brake Front Disc kit W/Modular X-10 Spindles, Red Calipers
Part #
6370SWBK-X10-5R
In Stock
$1,239.00
1963-70 C10, 5x5, W/ Modular X-10 2.5" Drop Spindles, 13" Front Rotors, 52MM Twin Piston Red Calipers, Kit
The 1963 to 1970 C10 eXtreme 2.5” Drop Modular™ spindle is designed to provide the perfect blend of late-model strength and technology. This spindle is ideal for extreme situations where a lowered stance is essential and 17” or larger wheels are being installed. The innovative design features a stronger, bolt-in sealed bearing hub assembly that allows for quick installation, eliminating the need to pack bearings with grease and set bearing preload.
This comprehensive kit includes 13" drilled and slotted rotors with twin piston 52MM calipers, stainless steel hoses, upper and lower ball joints, and inner and outer tie rod ends with billet sleeves, ensuring superior durability and performance. Available in both 5-lug and 6-lug truck bolt patterns, this spindle requires the use of 17” or larger wheels for optimal performance.
This comprehensive kit includes 13" drilled and slotted rotors with twin piston 52MM calipers, stainless steel hoses, upper and lower ball joints, and inner and outer tie rod ends with billet sleeves, ensuring superior durability and performance. Available in both 5-lug and 6-lug truck bolt patterns, this spindle requires the use of 17” or larger wheels for optimal performance.
| Product Name | 1963-70 C10 5 Lug 13" Big Brake Front Disc kit W/Modular X-10 Spindles, Red Calipers | SKU | 6370SWBK-X10-5R |
| Bolt Pattern | 5x5 | Brake Hose Included | Yes |
| Front Brake Hose Type | Rubber | Front Caliper Finish | Red Powder Coated |
| Front Caliper Material | Cast iron | Front Caliper Piston Qty | 2 |
| Rotor Hub Type | X-10 Sealed Bearing and Slip on Rotor | Rotor Style | Blue Zinc, Cross-Drilled, Gas Slotted, Vented |
| Front Spindle Included | Yes | Spindle Type | X-10 Modular Drop Spindle |
| Wheel Offset | 0.25 | Spindle Finish | None |
| Spindle Material | Ductile Iron | Spindle Drop Height | 2.5 |
| Front Caliper Piston Diameter | 52 | Spindles Included | Yes |
| Prop65 | Yes | Brand | CPP X10 Series |
| Product Location | Front | Front Rotor Diameter | 13 |
Write Your Own Review
Customer Questions
There are no tech documents.
Kit Includes:
- P/N: FA903
Description: 1973-1987 Chevy 1/2 Ton Truck, C10, Upper
Quantity: 2- - P/N: CP4SC-SAB
Description: Used to Connect a 63-70 Tie Rod end and a 73-87 Tied Rod end, this Allows a 73-87 Spindle to be used on a 63-70 C10.
Quantity: 1- - P/N: C2-9S
Description:
Quantity: 4- - P/N: C2-9F
Description:
Quantity: 4- - P/N: CP30021
Description: 73-87 X-10 2.5" Modular Drop Spindles, Pair, works with CPP Big Brake Kits
Quantity: 1- - P/N: 47084
Description:
Quantity: 6- - P/N: K100026
Description:
Quantity: 1- - P/N: DNA
Description: Parts Come Packaged Separately
Quantity: 1- - P/N: FA1014
Description: 1971-1987 Chevy 1/2 Ton Truck, C10, Lower
Quantity: 2- - P/N: BHK-R10
Description: 10mm bolt, Rubber Material
Quantity: 1- - P/N: 35033
Description: For Chevy C10s, 5 x 5 1/2"-20 CPP Bolts
Quantity: 2- - P/N: ES409R
Description: 73-87 Chevy Truck Outer Tie Rod End (Ea), Used in some CPP Square Body Brake Conversions
Quantity: 2- - P/N: GXZ-31884
Description: 13" Front Corvette Cross Drilled and Gas Slotted Rotor, Vented, Left and Right Hand Side, 5 x 5 and 5 x 5.5 CPP Big Brake Front Rotor
Quantity: 2- - P/N: BBCFR13-R
Description:
Quantity: 2-
