1963-70 C10 2.5" X-10 Modular Drop Spindles w/ Ball Joint and Tie Rods 5 Lug

High-performance CPP X10 Series spindle upgrade
Be the first to review this product
Part #
6370X10H-5
In Stock
$639.00
Uses 1973-87 Spindles, Tie Rods, Ball Joints and CPP's Aluminum Tie Rod Sleeves
Contact Support . Terms & Conditions
Add to Compare
Prop 65 warning
STRONGEST SPINDLES ON THE MARKET!
Enhance your vehicle's braking capabilities, accommodate larger wheels, and achieve an improved stance with CPP’s eXtreme X10 2.5" drop spindle. Our industry-leading Modular™ design not only supports some of the best aftermarket big brakes but also provides exceptional resistance to flex. The sealed bearing style hubs are integral to the rigid design, ensuring a worry-free, straightforward installation.

The X10 MODULAR™ EXTREME SPINDLE & HUB UPGRADE KIT allows for seamless upgrades to your existing CPP Big Brake kit, while also being a direct fit for popular aftermarket alternatives, including Baer, Brembo, and Wilwood. For the 1963 to 1970 C10 kits, you’ll receive all four ball joints, tie rod ends with billet sleeves
More Information
Product Name 1963-70 C10 2.5" X-10 Modular Drop Spindles w/ Ball Joint and Tie Rods 5 Lug SKU 6370X10H-5
Spindle Type X-10 Modular Drop Spindle Hubs Inlcuded Yes
Spindle Drop Height 2.5 Prop65 Yes
Brand CPP X10 Series
Write Your Own Review
Only registered users can write reviews. Please Sign in or create an account
Customer Questions
How much does a drop spindle lower your vehicle?
Our truck C10 drop spindles will lower you 2.5 inches while our car drop spindles will lower you 2 inches.
Read More
What are the benefits of using the X-10 spindle?
The biggest benefit to installing one of our X10 spindles is that it allows you to use our CPP sealed hub bearing which will give your vehicle a modern ride with larger roller tapered bearings.
Read More
How do I know if I need new spindles?
The spindle is designed for the bearings to ride on smoothly. If you hear any grinding or chattering as your tire rotates, it is time to replace the spindle.
Read More
Did you find what you were looking for?
C10_C20 Drop Spindle ID_diameters

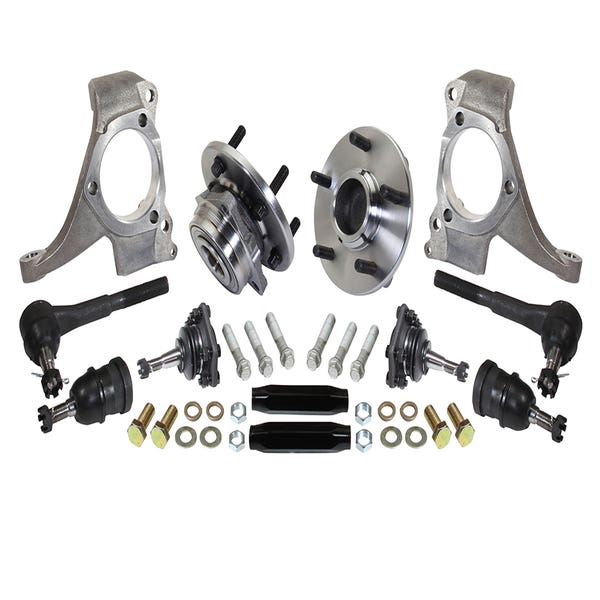

This kit includes:

  1. Fixed

  2. P/N: FA903

    • Description: Upper Ball Joint for 1973-1987 Chevy 1/2 Ton Truck, C10, Upper
    • Quantity: 2

  3. P/N: FA1014

    • Description: Lower Ball Joint for a 1971-1987 Chevy 1/2 Ton Truck C10
    • Quantity: 2

  4. P/N: ES409R

    • Description: Tie Rod End for 73-87 Chevy Truck Outer Tie Rod End
    • Quantity: 2

  5. P/N: CP4SC-SAB

    • Description: Aluminum Tie Rod Sleeves Black to connect a 63-70 Tie Rod end to a 73-87 Tie Rod End
    • Quantity: 1

  6. P/N: CP30021

    • Description: 73-87 X-10 2.5in Modular Drop Spindles, Pair
    • Quantity: 1

  7. P/N: 35033

    • Description: X10 Wheel Hub Assembly, 5x5 Sealed Bearing, 1/2in-20 Bolts, Sold Individually
    • Quantity: 2

  8. P/N: 47084

    • Description: M14 1.5 X 70Mm Hex Head Flange Bolt Grade 8 Black Zinc
    • Quantity: 6
