Street Beast Complete HydraStop Kit, Side Mounted Valve for 1965-70 Chevy Full Size
Part #
Product Takes 7 Days to Ship6570HBK-SB-S
$979.00
1965-70 Chevy Full Size Street Beast HydraStop complete hydraulic assist brake kit with side mounted GM style valve
CPP HydraStop systems are brand new hydraulic assist brake boosters designed to replace manual or vacuum assisted brake boosters in classic cars and trucks. All HydraStop systems are new units and are backed by a limited lifetime warranty when installed with a power steering filter. CPP PSFF-K and PO-OF6 filters are recommended, but other suitable power steering filters may be used.
HydraStop systems operate using hydraulic pressure from the vehicle’s power steering pump rather than engine vacuum and are capable of delivering up to 1800 psi at the wheels.
The CPP Street Beast HydraStop kit, part number 6570HBK-SB-S, is designed for 1965-70 Chevy Full Size applications and mounts directly to the firewall, providing a complete hydraulic assist brake system upgrade.

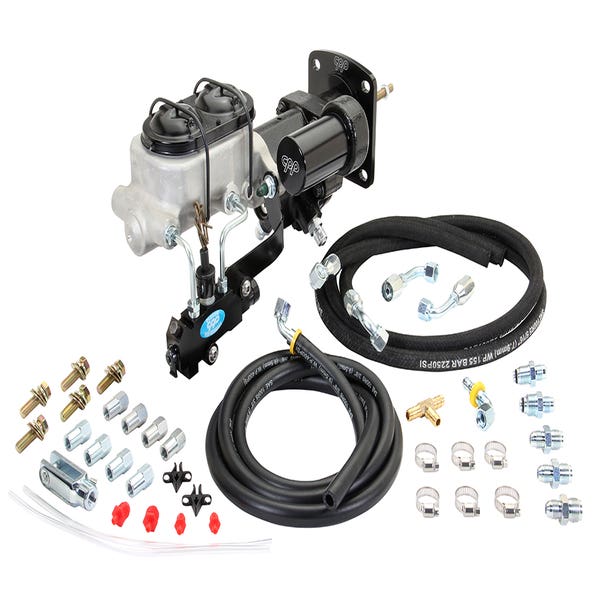

Street Beast HydraStop kits use a black direct mount aluminum bracket and include black hydraulic hoses, a 1 1/8 inch bore aluminum master cylinder with black lid, a side mounted aluminum GM style proportioning valve that works with most pre-bent brake line kits, and a black accumulator cover. This HydraStop system is supplied with AN6 fittings installed.
HydraStop systems operate using hydraulic pressure from the vehicle’s power steering pump rather than engine vacuum and are capable of delivering up to 1800 psi at the wheels.
The CPP Street Beast HydraStop kit, part number 6570HBK-SB-S, is designed for 1965-70 Chevy Full Size applications and mounts directly to the firewall, providing a complete hydraulic assist brake system upgrade.
Street Beast HydraStop kits use a black direct mount aluminum bracket and include black hydraulic hoses, a 1 1/8 inch bore aluminum master cylinder with black lid, a side mounted aluminum GM style proportioning valve that works with most pre-bent brake line kits, and a black accumulator cover. This HydraStop system is supplied with AN6 fittings installed.
| Product Name | Street Beast Complete HydraStop Kit, Side Mounted Valve for 1965-70 Chevy Full Size | SKU | 6570HBK-SB-S |
| Master Cylinder Finish | None | Master Cylinder Type | CPP Left Side Ports |
| Master Cylinder Lid Style | Black Corvette Style | Proportioning Valve Type | Side Mount Left Hand |
| Bracket And Lines Included | Yes | Proportioning Valve Included | Yes |
| Brake Light Switch Included | No | Warranty | Yes |
| Brand | CPP HydraStop |
Write Your Own Review
Customer Questions
This kit includes:
-
Fixed
-
P/N: HAHK-R
- Description: HydraStop Rubber Hydraulic Hose Kit
- Quantity: 1
-
P/N: M-C118-APBLF
- Description: 1 1/8in Bore Left Side Port Aluminum Power Master Cylinder W/Black Lid
- Quantity: 1
-
P/N: CPP-UHBA1
- Description: Hydraulic Brake Assist Kit
- Quantity: 1
-
P/N: 13049-B
- Description: Hydraulic Brake Assist Bracket Black
- Quantity: 1
-
P/N: 49037
- Description: Pedal Push Rod Female 3/8-24 Thread, 3.172in Long
- Quantity: 1
-
P/N: BP5100
- Description: Black HydraStop Accumulator Cover
- Quantity: 1
-
P/N: H-6570HB
- Description: Hardware Kit For Hydralic Brake Assist Kit
- Quantity: 1
-
P/N: TECH
- Description: Brake Trouble Shooting Guide
- Quantity: 1
-
P/N: SP015130
- Description: Proportioning Valve Wire, Sold as Each
- Quantity: 1
-
P/N: PV-24BBH
- Description: Black Aluminum Proportioning Valve for 2 & 4 Wheel Disc
- Quantity: 1
-
P/N: K100083-B
- Description: Prop Valve Side Mount Bracket Kit Black
- Quantity: 1
