12” Disc kit W/ 2” Drop Spindles, 1967-69 GM F-Body, 68-74 GM X-Body
Part #
6774SWBK-D12
In Stock
$505.00

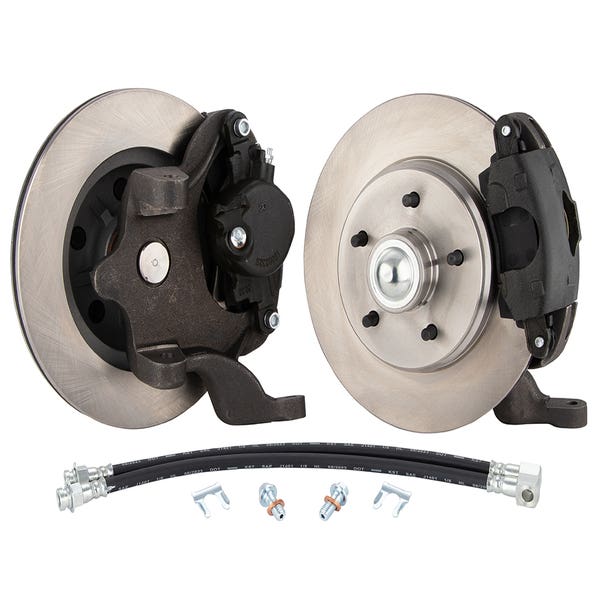

1967-69 GM F-Body, 68-74 GM X-Body, Kit
Upgrade your braking system with our complete front disc brake kit, featuring new and revised cast iron spindles that represent the most economical choice for accommodating big brakes within a 15" wheel setup. The kit comes with 12" rotors and high-performance calipers with a huge 2 15/16" piston, providing unparalleled stopping power. This kit also offers a full 2" drop without altering the car's steering geometry and is designed to accept most 15" or larger custom wheels.
| Product Name | 12” Disc kit W/ 2” Drop Spindles, 1967-69 GM F-Body, 68-74 GM X-Body | SKU | 6774SWBK-D12 |
| Bolt Pattern | 5x4.75 | Front Brake Hose Type | Rubber |
| Front Caliper Finish | Natural | Front Caliper Material | Cast iron |
| Front Caliper Piston Qty | 1 | Rotor Hub Type | One Piece Rotor |
| Rotor Style | Plain, Vented | Front Spindle Included | Yes |
| Spindle Type | Drop Spindle | Spindle Material | Ductile Iron |
| Spindle Drop Height | 2 | Front Caliper Piston Diameter | 2.95 |
| Spindles Included | Yes | Prop65 | Yes |
| Brand | CPP | Front Rotor Diameter | 12 |
Write Your Own Review
Customer Questions
There are no tech documents.
Kit Includes:

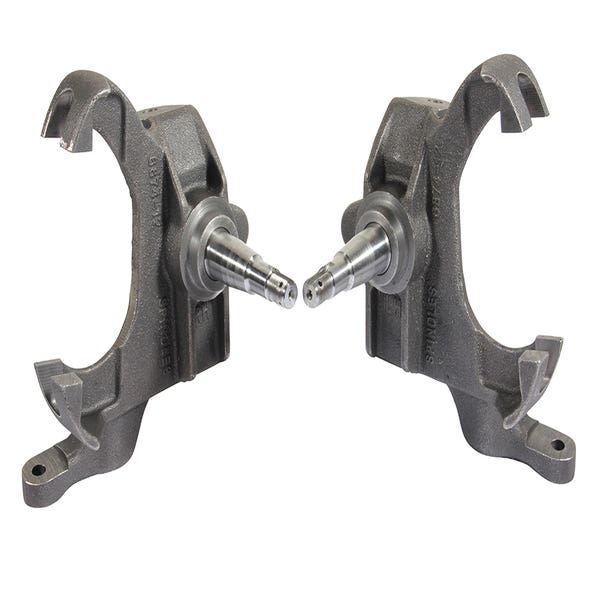

- P/N: LM67048
Description: A-6 Bearing Only, Sold as Each
Quantity: 2- - P/N: 6774DS-12
Description: 68-69 Camaro/Firebird & 68-74 Nova, Uses D52 Style Calipers and 88-92 Camaro 1lE 12" Rotors (AR-9003)
Quantity: 1- - P/N: LM12649
Description: A-3 Bearing Only, Sold as Each
Quantity: 2- - P/N: 4060M
Description: 1980 Chevy Camaro, 10mm x1.5 CPP Banjo Bolt, Sold Individually
Quantity: 1- - P/N: CPPHWF-B
Description: Plain Finish
Quantity: 1- - P/N: BHK-R10
Description: 10mm bolt, Rubber Material
Quantity: 1- - P/N: 8871
Description: Grease Seal, Sold as Each
Quantity: 2- - P/N: 4059M
Description: 1980 Chevy Camaro, 10mm x1.5 CPP Banjo Bolt, Sold Individually
Quantity: 1- - P/N: AR-31813
Description: 5 x 4.75 Front Rotor used in CPP 12" Drop Spindle Kits
Quantity: 2-
