CPP CS Series Front Disc Brake Kit with C7 Hubs, Stock Height Spindles, 1970-81 F Body, Red Calipers

High-performance CPP Corvette-Style hub kits
Be the first to review this product
Part #
7081SWBK-SC7R
In Stock
$979.00
CS Series Front Disc Brake Kit for 1970-81 F Body and 1975-79 X Body Applications Featuring Stock Height Corvette Style Spindles, C7 Sealed Hubs, 13 Inch Drilled and Slotted Rotors, and C5 Twin Piston Red Calipers
Contact Support . Terms & Conditions
Add to Compare
Prop 65 warning

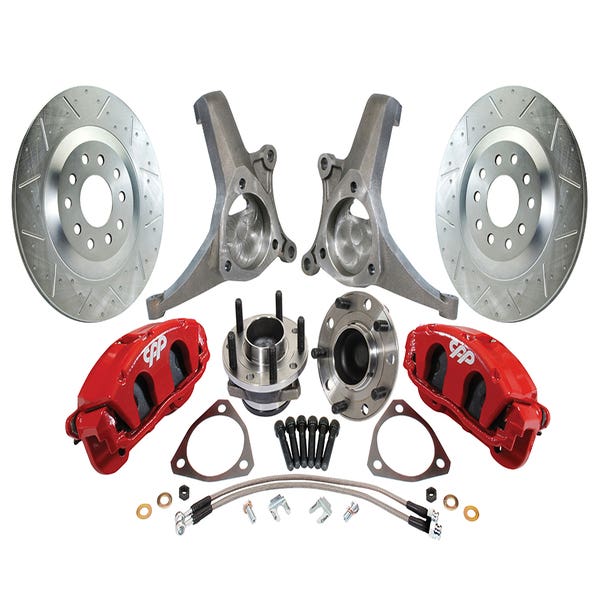

The CPP CS Series front disc brake kit, part number 7081SWBK-SC7R, is designed for classic GM cars and built around a direct fit Corvette style spindle that retains proper suspension and steering geometry. This stock height CS spindle utilizes a Corvette style sealed hub assembly based on a C7 bearing design featuring a double row ball bearing arrangement with a larger outer bearing row to increase load capacity, improve bearing life, and enhance camber stiffness. By eliminating flex at the factory spindle pin, this design helps reduce caliper piston pushback commonly associated with larger and multi piston brake systems.

This kit includes 13 inch drilled and slotted rotors paired with C5 twin piston calipers finished in red, along with stainless steel brake hoses for consistent braking performance and pedal feel. The C7 hub features a 5 x 4.75 bolt pattern with a 10 hole layout, supplied with 7/16 x 20 studs and provisions for optional 1/2 x 20 wheel studs.

A minimum 17 inch wheel is required, with the brake package ideally suited for 18 to 20 inch wheel combinations. This brake kit is compatible with 1970-81 F Body and 1975-79 X Body applications.
More Information
Product Name CPP CS Series Front Disc Brake Kit with C7 Hubs, Stock Height Spindles, 1970-81 F Body, Red Calipers SKU 7081SWBK-SC7R
Bolt Pattern 5x4.75 Front Brake Hose Type Stainless Steel
Front Caliper Finish Red Powder Coated Front Caliper Material Aluminum
Front Caliper Piston Qty 2 Rotor Hub Type C7 Hub with Slip on Rotor
Front Spindle Included Yes Spindle Type Corvette Style Stock Height
Front Caliper Piston Diameter 42 Brand CPP Corvette Style Series
Front Rotor Diameter 13
Write Your Own Review
Only registered users can write reviews. Please Sign in or create an account
Customer Questions
I purchased this kit and trying to figure out what wheels will work best with it. My old ones are 17 inch Boyd Cod, but they rub the caliber. Maybe 18 inch but what back spacing? What them to fit in with have to mod anything. Thanks
Hello I have attached a C5 brake template that you can use when ordering new wheels.
Read More
Did you find what you were looking for?

There are no tech documents.

This kit includes:

  1. Fixed

  2. P/N: BHK-S10

    • Description: 16in Front Brake Hose Kit, 10mm Banjo 3/8x24, Stainless Steel
    • Quantity: 1

  3. P/N: 743334U-R

    • Description: Red C5 Loaded Caliper - Left and Right Hand Side, Sold as a Pair
    • Quantity: 2

  4. P/N: GXZ-31877

    • Description: Front Rotors zinc plated 13in Corvette Drilled/Slotted, 5x 4.75 and 5 x 4.5 Corvette Style Rotor
    • Quantity: 2

  5. P/N: C2-8F

    • Description: 7/16in-20 Hex Nut G8
    • Quantity: 4

  6. P/N: C2-8S

    • Description: 7/16in Sae Flat Washer G8
    • Quantity: 4

  7. P/N: 35041-R1

    • Description: CPPs Corvette Style Hubs
    • Quantity: 2

  8. P/N: I-7081SWBK-SC5/7

    • Description: 7081SWBK-SC5B/R and 7081SWBK-SC7B/R Instructions
    • Quantity: 1

  9. P/N: C1-9LHC

    • Description: 1/2in High Collar Plain Lock Washer G5
    • Quantity: 6

  10. P/N: 30014

    • Description: Camaro C5 Stock Spindles Lh/Rh (Pr)
    • Quantity: 1

  11. P/N: H-30014

    • Description: C5 Corvette Spindle Hardware Kit (Hub)
    • Quantity: 1
