Totally Tubular Upper and Lower Control Arms for 1958-64 Chevy Full Size

Part #
5864TCA-ULK-B
In Stock
$1,035.00
1958-64 Chevy Fullsize Totally Tubular Upper and Lower Control Arms with Ball Joins and D Spec Bushings

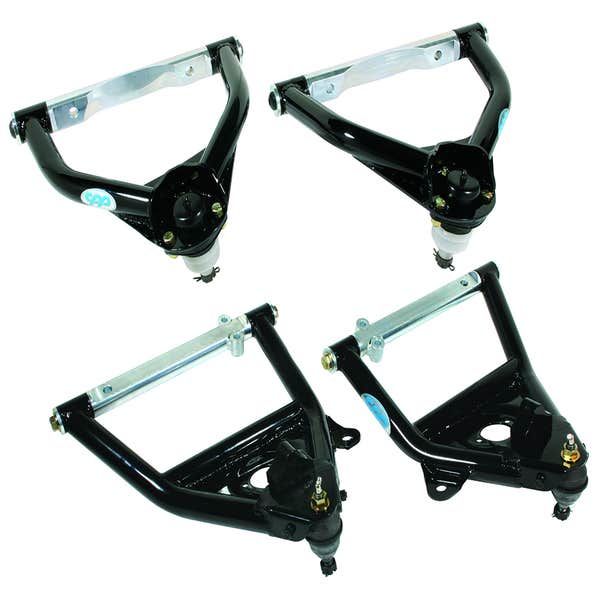

Totally Tubular Upper and Lower Control Arms for 1958-64 Chevy Full Size (Part #5864TCA-ULK-B)
CPP’s Totally Tubular Upper and Lower Control Arms for 1958-64 Chevy Full Size are designed for enhanced handling and durability. Constructed from 1-1/4” x .120” wall D.O.M. tubing for the upper arms and 1-1/2” x .120” wall D.O.M. tubing for the lower arms, these control arms feature robust pivot barrels that minimize distortion during heavy use. The upper arms are engineered for power steering vehicles, adding 5 degrees of caster for improved steering response. The lower arms provide increased ground clearance and are compatible with sway bars. Self-lubricating, non-squeak plastic bushings ensure longevity, even in extreme temperatures. The zinc-plated chrome-moly cross shafts and sleeves offer durability and an interlocking design to prevent loosening. The improved pivot design accommodates both forward and backward loads, providing superior strength. Installation is easy and requires no modifications.
More Information
Product Name Totally Tubular Upper and Lower Control Arms for 1958-64 Chevy Full Size SKU 5864TCA-ULK-B
Finish Powder Coated Black Hardware Included Yes
Ball Joints Included Yes Control Arm Shafts Included Yes
Bushing Material D-Spec Bushings Prop65 Yes
Brand CPP Totally Tubular Product Location Front
Write Your Own Review
Only registered users can write reviews. Please Sign in or create an account
Customer Questions
Will this fit a 1960 Pontiac Strato Chief?
Hi Tyler, Tubular control arm kit #5864TCA-ULK-B will not work on a 1960 Pontiac Strato Chief.
Did you find what you were looking for?

There are no tech documents.

This kit includes:

  1. Fixed
  2. P/N: 5864TCA-LKB

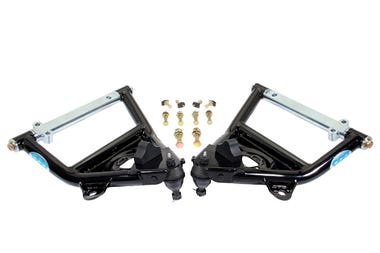

    • Description: Totally Tubular Lower Control Arm Kit
    • Quantity: 1
  3. P/N: 5864TCA-UKB

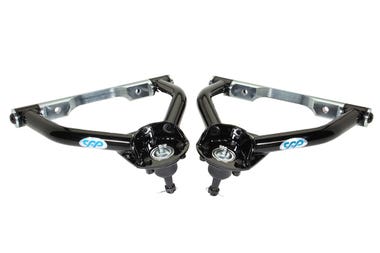

    • Description: Totally Tubular Upper Control Arms for 1958-1964 Chevy Fullsize with Ball Joints
    • Quantity: 1
