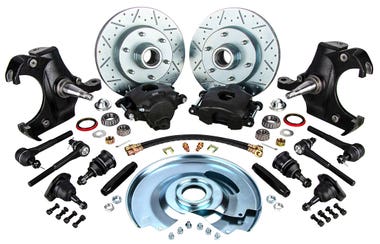

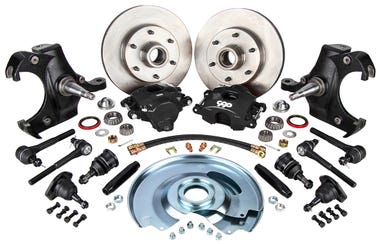

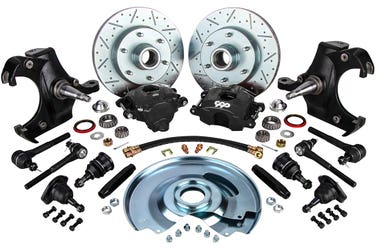

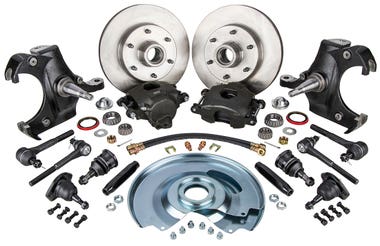

Front Disc Brake Kit w/ 2.5" Drop Spindles w/ Ball Joints, Tie Rods & Sleeves & Wilwood Black Caliper

CPP high-performance automotive parts for classic cars
Be the first to review this product
Part #
6370SWBK-6DWWB
In Stock
$1,125.00
1963-1970 Chevy 1/2 Ton Truck, 6x5.5 12" Rotor, Wilwood 2 Piston, Drilled & Slotted, Stainless Hoses, Black Calipers
Contact Support . Terms & Conditions
Add to Compare
Prop 65 warning
This kit also includes a Front Disc Brake Kit with 2.5" drop spindles, ball joints, tie rods & sleeves. It is made with the highest quality components and is backed with a limited lifetime warranty which guarantees it will last. It is a complete kit so no extra parts need to be purchased for installation.

This complete pre-assembled brake system provides improved performance and added protection by reducing brake time that will make a huge impact on your stops. Its rotor has cross-drilled and big dimple-slotted design that increase moisture removal. It also provides more cooling which creates a cooler running system for added durability.

The Wilwood 2" Piston calipers, stainless hoses and drop spindles make this brake system easy to install and operate. It is highly engineered and crafted to ensure superior safety for you and your passengers.

Part #6370SWBK-6DWWB is the perfect front disc brake kit for your Chevy 1/2" Ton Truck manufactured between 1963 and 1970. It is cost-effective, reliable and offers superior braking power that will make your trip smooth and safe. Invest in this brake kit and experience the difference.
More Information
Product Name Front Disc Brake Kit w/ 2.5" Drop Spindles w/ Ball Joints, Tie Rods & Sleeves & Wilwood Black Caliper SKU 6370SWBK-6DWWB
Bolt Pattern 6x5.5 Front Brake Hose Type Stainless Steel
Front Caliper Finish Black Powder Coated Front Caliper Material Aluminum
Front Caliper Piston Qty 2 Rotor Hub Type One Piece Rotor
Rotor Style Cross-Drilled, Gas Slotted, Vented Front Spindle Included Yes
Spindle Type Drop Spindle Spindle Material Ductile Iron
Spindle Drop Height 2.5 Front Caliper Piston Diameter 2
Spindles Included Yes Prop65 Yes
Brand CPP Front Rotor Diameter 12
Write Your Own Review
Only registered users can write reviews. Please Sign in or create an account
Customer Questions
No Questions
Did you find what you were looking for?

There are no tech documents.

This kit includes:

  1. Fixed

  2. P/N: FA903

    • Description: Upper Ball Joint for 1973-1987 Chevy 1/2 Ton Truck, C10, Upper
    • Quantity: 2

  3. P/N: CP4S4

    • Description: 1973-87 C-10 2.5in Drop Spindles, Pair
    • Quantity: 1

  4. P/N: ES409R

    • Description: Tie Rod End for 73-87 Chevy Truck Outer Tie Rod End
    • Quantity: 2

  5. P/N: ES350L

    • Description: Tie Rod End for 65-70 C10, 5/8-18 7.19in Left Outer
    • Quantity: 2

  6. P/N: FA1014

    • Description: Lower Ball Joint for a 1971-1987 Chevy 1/2 Ton Truck C10
    • Quantity: 2

  7. P/N: 8871

    • Description: Grease Seal, Sold as Each
    • Quantity: 2

  8. P/N: CP4SC-SAB

    • Description: Aluminum Tie Rod Sleeves Black to connect a 63-70 Tie Rod end to a 73-87 Tie Rod End
    • Quantity: 1

  9. P/N: LM48548

    • Description: A-5 Bearing Only, Sold as Each
    • Quantity: 2

  10. P/N: LM12649

    • Description: A-3 Bearing Only, Sold as Each
    • Quantity: 2

  11. P/N: CPDS-10

    • Description: Dust Shields Kit, Left and Right Side
    • Quantity: 1

  12. P/N: CPPHWF-B

    • Description: Dust Cap Hardware Kit Large Cap 2in Plain
    • Quantity: 1

  13. P/N: BHK-S7-38

    • Description: 16in Front Brake Hose Kit, 7/16in-20 Banjo, 3/8in-24, Stainless Steel
    • Quantity: 1

  14. P/N: TECH

    • Description: Brake Trouble Shooting Guide
    • Quantity: 1

  15. P/N: 120-10936-BK

    • Description: Wilwood GM D52 Dual Piston Floater Calipers, Black
    • Quantity: 2

  16. P/N: CPBP-E52

    • Description: CPP High Performance Brake Pad - D52. Set of 4
    • Quantity: 1

  17. P/N: GXZ-31810

    • Description: 11.65in Rear Chevy Truck Drilled/Slotted Rotor, Blue Zinc, for 60-87 C10 Front Disc Kits
    • Quantity: 2

  18. P/N: DNA

    • Description: Parts Come Packaged Separately - Not Assembled
    • Quantity: 1
