Front Disc Brake Kit w/ 2.5" Drop Spindles w/ Ball Joints, Tie Rods & Sleeves & Upgraded Rotors, Black Caliper
Part #
6370SWBK-6D-ARGXB
In Stock
Estimated Date of Shipment # 2025-06-03
$955.00
1963-1970 Chevy 1/2 Ton Truck, 6x5.5 12" Rotor, Single Piston, Drilled & Slotted, Black Calipers

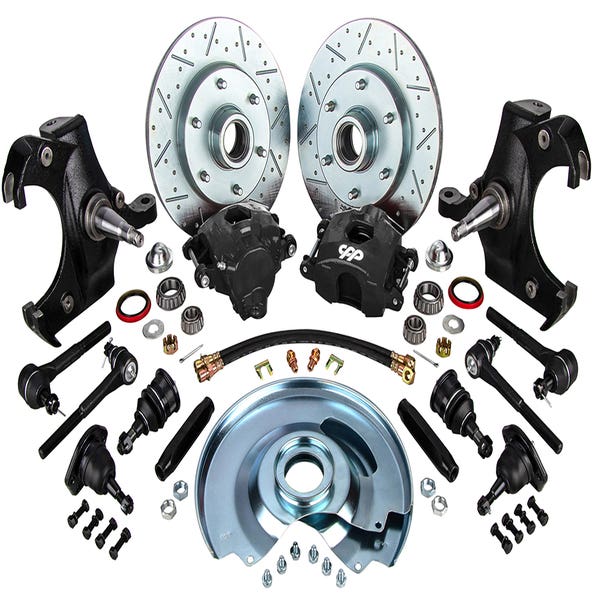

This kit is comprised of a 12" diameter, 6x5.5", single piston, drilled and slotted rotor, black calipers with 2.5" drop spindles, tie rods, and sleeves. It includes all the components necessary for better braking performance and improved heat dissipation, such as caliper brackets and clips, wheel bearings, seals, self-adjusting springs, installation hardware and more. You can use it to fit not only the 1963-1970 Chevy 1/2" Ton Truck, but also various other trucks with 6x5.5" lug pattern and 12" rotors.
The 1963-1970 Chevy 1/2" Ton Truck Front Disc Brake Kit with 2.5" Drop Spindles, Ball Joints, Tie Rods and Sleeves from Part # 6370SWBK-6D-ARGXB is an ideal solution for upgrading older vehicle braking systems. The drilled and slotted rotors provide better performance, dissipate heat faster, and reduce the chance of brake fade. The included black calipers with 2.5" drop spindles make installation a breeze with their quality construction and durability. The tie-rods and sleeves give you a secure connection to your vehicle and increased control over brake force while driving.
Great for use with Chevy 1/2" Ton Trucks and other vehicles with a 6x5.5” lug pattern and 12” rotors, this 1963-1970 Chevy 1/2" Ton Truck Front Disc Brake Kit with 2.5" Drop Spindles, Ball Joints, Tie Rods and Sleeves from Part # 6370SWBK-6D-ARGXB is the perfect all-in-one solution for your braking system upgrade. The drilled and slotted rotors, black calipers, and tie-rods and sleeves are all crafted from superior materials and made to last, providing superior braking than ever before. Perfect your vehicle’s suspension and enjoy a smooth, stable ride with this braking kit.
The 1963-1970 Chevy 1/2" Ton Truck Front Disc Brake Kit with 2.5" Drop Spindles, Ball Joints, Tie Rods and Sleeves from Part # 6370SWBK-6D-ARGXB is an ideal solution for upgrading older vehicle braking systems. The drilled and slotted rotors provide better performance, dissipate heat faster, and reduce the chance of brake fade. The included black calipers with 2.5" drop spindles make installation a breeze with their quality construction and durability. The tie-rods and sleeves give you a secure connection to your vehicle and increased control over brake force while driving.
Great for use with Chevy 1/2" Ton Trucks and other vehicles with a 6x5.5” lug pattern and 12” rotors, this 1963-1970 Chevy 1/2" Ton Truck Front Disc Brake Kit with 2.5" Drop Spindles, Ball Joints, Tie Rods and Sleeves from Part # 6370SWBK-6D-ARGXB is the perfect all-in-one solution for your braking system upgrade. The drilled and slotted rotors, black calipers, and tie-rods and sleeves are all crafted from superior materials and made to last, providing superior braking than ever before. Perfect your vehicle’s suspension and enjoy a smooth, stable ride with this braking kit.
Product Name | Front Disc Brake Kit w/ 2.5" Drop Spindles w/ Ball Joints, Tie Rods & Sleeves & Upgraded Rotors, Black Caliper | SKU | 6370SWBK-6D-ARGXB |
Bolt Pattern | 6x5.5 | Front Brake Hose Type | Rubber |
Front Caliper Finish | Black Powder Coated | Front Caliper Material | Cast iron |
Front Caliper Piston Qty | 1 | Rotor Hub Type | One Piece Rotor |
Rotor Style | Cross-Drilled, Gas Slotted, Vented | Front Spindle Included | Yes |
Spindle Type | Drop Spindle | Spindle Material | Ductile Iron |
Spindle Drop Height | 2.5 | Front Caliper Piston Diameter | 2.95 |
Spindles Included | Yes | Prop65 | Yes |
Brand | CPP | Front Rotor Diameter | 12 |
Write Your Own Review
Customer Questions
There are no tech documents.
This kit includes:
-
Fixed
-
P/N: ES409R
- Description: Tie Rod End for 73-87 Chevy Truck Outer Tie Rod End
- Quantity: 2
-
P/N: FA903
- Description: Upper Ball Joint for 1973-1987 Chevy 1/2 Ton Truck, C10, Upper
- Quantity: 2
-
P/N: ES350L
- Description: Tie Rod End for 65-70 C10, 5/8-18 7.19in Left Outer
- Quantity: 2
-
P/N: FA1014
- Description: Lower Ball Joint for a 1971-1987 Chevy 1/2 Ton Truck C10
- Quantity: 2
-
P/N: 8871
- Description: Grease Seal, Sold as Each
- Quantity: 2
-
P/N: CP4SC-SAB
- Description: Aluminum Tie Rod Sleeves Black to connect a 63-70 Tie Rod end to a 73-87 Tie Rod End
- Quantity: 1
-
P/N: LM48548
- Description: A-5 Bearing Only, Sold as Each
- Quantity: 2
-
P/N: LM12649
- Description: A-3 Bearing Only, Sold as Each
- Quantity: 2
-
P/N: CPDS-10
- Description: Dust Shields Kit, Left and Right Side
- Quantity: 1
-
P/N: CPPHWF-B
- Description: Dust Cap Hardware Kit Large Cap 2in Plain
- Quantity: 1
-
P/N: BHK-R7-38
- Description: 16in Front Brake Hose Kit, 7/16in-20 Banjo, 3/8in-24, Rubber
- Quantity: 1
-
P/N: TECH
- Description: Brake Trouble Shooting Guide
- Quantity: 1
-
P/N: CP4S4
- Description: 1973-87 C-10 2.5in Drop Spindles, Pair
- Quantity: 1
-
P/N: DNA
- Description: Parts Come Packaged Separately - Not Assembled
- Quantity: 1
-
P/N: GXZ-31810
- Description: 11.65in Rear Chevy Truck Drilled/Slotted Rotor, Blue Zinc, for 60-87 C10 Front Disc Kits
- Quantity: 2
-
Left Side Caliper Color
-
P/N: 4036-B
- Description: Black Caliper - Left Hand Side
- Quantity: 1
-
Right Side Caliper Color
-
P/N: 4035-B
- Description: Black Caliper - Right Hand Side
- Quantity: 1
