Street Beast Complete HydraStop Kit for 1964-72 A-Body

High-performance CPP HydraStop braking system
Be the first to review this product
Part #
6474HBK-SB
In Stock
$979.00
1964-1972 A-Body, 67-69 F-Body, 68-74 X-Body, Includes HydraStop, Rubber Hose Kit, Master & Adjustable Valve W/ Black Accumulator Cover
Contact Support . Terms & Conditions
Add to Compare
Prop 65 warning
6474HBK-SB: 1964-1972 A-Body, 1967-1969 F-Body, 1968-1974 X-Body

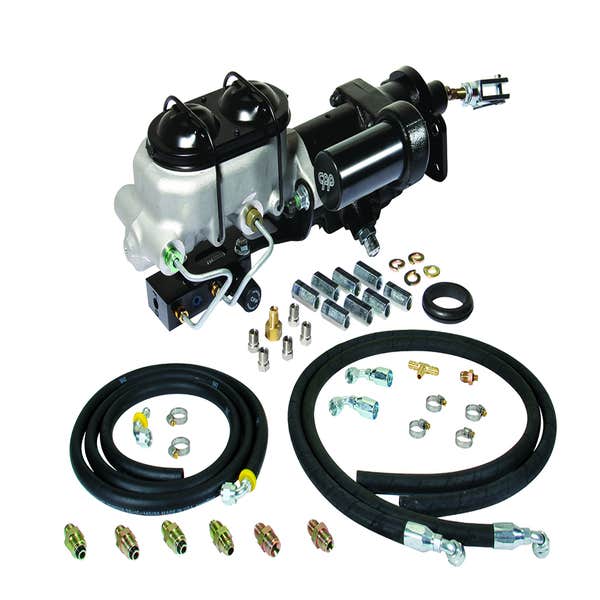

CPP HydraStop Kits are high-performance hydraulic assist brake systems designed to upgrade manual or vacuum-assisted brakes to modern, compact hydraulic units. Powered by your power steering pump, these kits provide exceptional braking performance. The direct bolt-in design includes a high-performance hydraulic brake assist unit, billet aluminum firewall mounting bracket, rubber high-pressure lines, a heavy-duty power steering return line, and all necessary hardware. With up to 1800 psi at the wheels, these systems ensure superior braking power and ease of installation with standard tools.

The "Street Beast" package features a black billet bracket, an aluminum Corvette-style master cylinder, a \Prop & Stop Block, and rubber pressure and return hoses, making it the perfect braking upgrade for your 1964-1972 A-Body, 1967-1969 F-Body, or 1968-1974 X-Body.
More Information
Product Name Street Beast Complete HydraStop Kit for 1964-72 A-Body SKU 6474HBK-SB
Master Cylinder Finish None Master Cylinder Type CPP Left Side Ports
Master Cylinder Lid Style Black Corvette Style Proportioning Valve Type Under Master Mount
Bracket And Lines Included Yes Proportioning Valve Included Yes
Brake Light Switch Included No Warranty Yes
Prop65 Yes Brand CPP HydraStop
Write Your Own Review
Only registered users can write reviews. Please Sign in or create an account
Customer Questions
what type of power steering pump do i need for this?
The power steering pump recommended for this CPP HydraStop Hydraulic Brake (part # 6474HBK-SB) would be either a GM Type II or GM Saginaw type pump with a minimum flow of 2.25 GPM and 1200 PSI.
Read More
What power steering fluid do you recommend for this part?
For this CPP HydraStop Hydraulic Brake Assist System (Part # 6474HBK-SB) we recommend using AC-Delco brand power steering fluid.
Read More
Instructions recommend a filter but do not say the best place to install it. I would think between the pump and the Hydrastop (Hi Pressure line) but CPPM sells the filter with push lock connectors which I assume are NOT for Hi Pressure lines. Where does the filter go?
Hello! The best place will be on the return hose to the reservoir, only due high pressure causing damaged to the filter.
Read More
Did you find what you were looking for?
HAHK-S _HAHK-R Instructions
HydraStop Instruction Sheet_1.13

This kit includes:

  1. Fixed

  2. P/N: HAHK-R

    • Description: HydraStop Rubber Hydraulic Hose Kit
    • Quantity: 1

  3. P/N: M-C118-APBLF

    • Description: 1 1/8in Bore Left Side Port Aluminum Power Master Cylinder W/Black Lid
    • Quantity: 1

  4. P/N: CPP-UHBA1

    • Description: Hydraulic Brake Assist Kit
    • Quantity: 1

  5. P/N: 13024-B

    • Description: Hydraulic Brake Assist Bracket Black
    • Quantity: 1

  6. P/N: PVKU-APVDB

    • Description: Proportioning Valve W/Bracket & Lines Black Undermount, Frame Mount, 1/2x20 & 9/16x18 Ports
    • Quantity: 1

  7. P/N: I-HYDRA-BB

    • Description: HYDRA-BB Instructions
    • Quantity: 1

  8. P/N: BP5100

    • Description: Black HydraStop Accumulator Cover
    • Quantity: 1

  9. P/N: H-6474HB

    • Description: Hardware Kit For Hydralic Brake Assis Kit
    • Quantity: 1
