Corvette Style Front Disc Brake Spindle Wheel Kit w/ C7 Hubs & 2" Drop Spindles, 1964-74 AXF GM A-F-X_ Bodies
Part #
6474SWBK-DC7B
In Stock
$979.00
1964-72 GM A Body, 67-69 F Body, 68-74 X Body, 13" Front Rotors, 5x4.75, C5 Twin Piston Caliper, 13" Drilled & Slotted Rotors, Stainless Hoses, Black Calipers
The CPP CS series brake kits utilize a new direct fit spindle that works with stock steering arms, offering a seamless upgrade for your braking system. This spindle is equipped with a C7 bearing hub assembly, which eliminates flex on the factory spindle pin, an issue that can cause caliper piston pushback, particularly with aftermarket multi-piston radial mount calipers. Each kit includes 13” C5 drilled and slotted rotors paired with C5 twin piston calipers and stainless steel hoses for enhanced performance. Designed to accommodate 17-inch wheels and larger, this kit is ideal for achieving optimal performance with 18-20” wheels.
These brake kits feature a 5 on 4.75 bolt pattern, utilizing 7/16 x 20 studs, and the C7 hubs are equipped with 1/2 x 20 holes, allowing for the option to upgrade to larger studs if needed. This brake kit is compatible with 1964-1972 GM A Body, 1967-1969 F Body, and 1968-1974 X Body applications.
These brake kits feature a 5 on 4.75 bolt pattern, utilizing 7/16 x 20 studs, and the C7 hubs are equipped with 1/2 x 20 holes, allowing for the option to upgrade to larger studs if needed. This brake kit is compatible with 1964-1972 GM A Body, 1967-1969 F Body, and 1968-1974 X Body applications.
| Product Name | Corvette Style Front Disc Brake Spindle Wheel Kit w/ C7 Hubs & 2" Drop Spindles, 1964-74 AXF GM A-F-X_ Bodies | SKU | 6474SWBK-DC7B |
| Bolt Pattern | 5x4.75 1/2x20 Threaded Holes, 5x4.75 with 7/16x20 Studs | Brake Hose Included | Yes |
| Front Brake Hose Type | Stainless Steel | Front Caliper Finish | Black Powder Coated |
| Front Caliper Material | Aluminum | Front Caliper Piston Qty | 2 |
| Rotor Hub Type | C7 Hub with Slip on Rotor | Rotor Style | Blue Zinc, Cross-Drilled, Gas Slotted, Vented |
| Front Spindle Included | Yes | Spindle Type | Corvette Style Drop Spindle |
| Wheel Offset | 0 | Spindle Finish | None |
| Spindle Material | Ductile Iron | Spindle Drop Height | 2 |
| Front Caliper Piston Diameter | 42 | Spindles Included | Yes |
| Prop65 | Yes | Brand | CPP Corvette Style Series |
| Product Location | Front | Front Rotor Diameter | 13 |
Write Your Own Review
Customer Questions

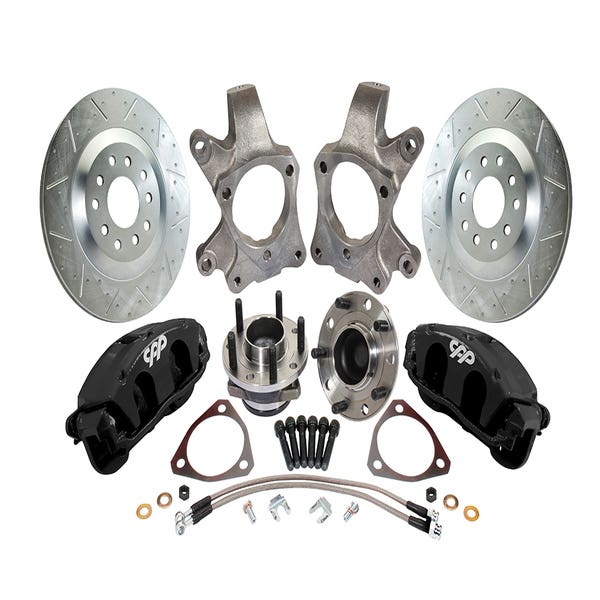

Kit Includes:
- P/N: C2-8F
Description:
Quantity: 4- - P/N: C2-8S
Description:
Quantity: 4- - P/N: BHK-S10
Description: 10mm bolt, 3/8"-24, Stainless Steel Material, Sold as a Kit
Quantity: 1- - P/N: CP30017
Description: 1964-72 A-Body, 67-69 F-Body, 68-74 X-Body, 2" Drop Spindle, Uses C5, C6 or C7 Brake Systems
Quantity: 1- - P/N: 743334U-B
Description: 1997-2003 Chevy Corvette, 10mm x1.5 Banjo Bolt, Fits all CPP Corvette Brake Kits
Quantity: 2- - P/N: 35041
Description: Chevy & Ford Car, Dual Bolt Pattern, 5x4.5 and 5x4.75, 1/2"-20 Bolts, Sold Individually
Quantity: 2- - P/N: GXZ-31877
Description: 13" Front Corvette Cross Drilled and Gas Slotted Rotor, Vented, Blue Zinc, Left and Right Hand Side, 5x 4.75 and 5 x 4.5 Corvette Style Rotor
Quantity: 2-
