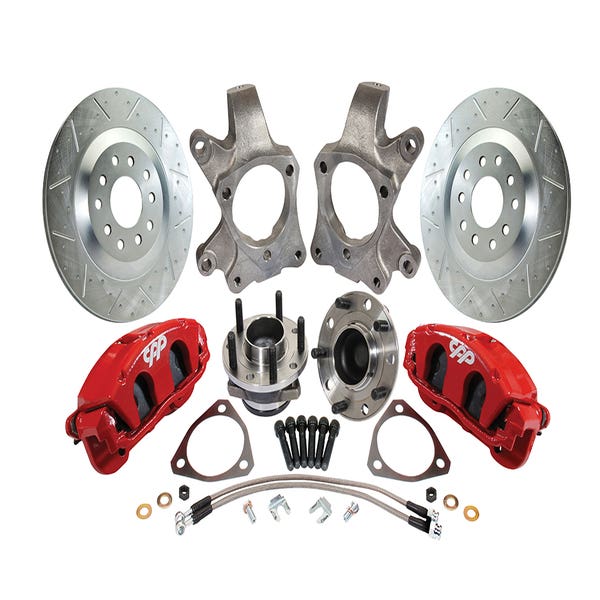

Corvette Style Front Disc Brake Spindle Wheel Kit w/ C7 Hubs & 2" Drop Spindles, 1964-74 GM A-F-X Bodies

High-performance CPP Corvette-Style hub kits
Be the first to review this product
Part #
6474SWBK-DC7R
In Stock
$979.00
1964-72 GM A Body, 67-69 F Body, 68-74 X Body, 13" Front Rotors, 5x4.75, C5 Twin Piston Caliper, 13" Drilled & Slotted Rotors, Stainless Hoses, Red Calipers
Contact Support . Terms & Conditions
Add to Compare
Prop 65 warning
The CPP CS series brake kits utilize a new direct fit spindle that works with stock steering arms, offering a seamless upgrade for your braking system. This spindle is equipped with a C7 bearing hub assembly, which eliminates flex on the factory spindle pin, an issue that can cause caliper piston pushback, particularly with aftermarket multi-piston radial mount calipers. Each kit includes 13” C5 drilled and slotted rotors paired with C5 twin piston calipers and stainless steel hoses for enhanced performance. Designed to accommodate 17-inch wheels and larger, this kit is ideal for achieving optimal performance with 18-20” wheels.

These brake kits feature a 5 on 4.75 bolt pattern, utilizing 7/16 x 20 studs, and the C7 hubs are equipped with 1/2 x 20 holes, allowing for the option to upgrade to larger studs if needed. This brake kit is compatible with 1964-1972 GM A Body, 1967-1969 F Body, and 1968-1974 X Body applications.
More Information
Product Name Corvette Style Front Disc Brake Spindle Wheel Kit w/ C7 Hubs & 2" Drop Spindles, 1964-74 GM A-F-X Bodies SKU 6474SWBK-DC7R
Bolt Pattern 5x4.75 1/2x20 Threaded Holes, 5x4.75 with 7/16x20 Studs Brake Hose Included Yes
Front Brake Hose Type Stainless Steel Front Caliper Finish Red Powder Coated
Front Caliper Material Aluminum Front Caliper Piston Qty 2
Rotor Hub Type C7 Hub with Slip on Rotor Rotor Style Blue Zinc, Cross-Drilled, Gas Slotted, Vented
Front Spindle Included Yes Spindle Type Corvette Style Drop Spindle
Wheel Offset 0 Spindle Finish None
Spindle Material Ductile Iron Spindle Drop Height 2
Front Caliper Piston Diameter 42 Spindles Included Yes
Prop65 Yes Brand CPP Corvette Style Series
Product Location Front Front Rotor Diameter 13
Write Your Own Review
Only registered users can write reviews. Please Sign in or create an account
Customer Questions
No Questions
Did you find what you were looking for?
6474SWBK-STC5 Instructions

This kit includes:

  1. Fixed

  2. P/N: BHK-S10

    • Description: 16in Front Brake Hose Kit, 10mm Banjo 3/8x24, Stainless Steel
    • Quantity: 1

  3. P/N: CP30017

    • Description: CS Series 2in Drop Spindles
    • Quantity: 1

  4. P/N: 743334U-R

    • Description: Red C5 Loaded Caliper - Left and Right Hand Side, Sold as a Pair
    • Quantity: 2

  5. P/N: 35041

    • Description: CPPs Corvette Style Hubs
    • Quantity: 2

  6. P/N: GXZ-31877

    • Description: Front Rotors zinc plated 13in Corvette Drilled/Slotted, 5x 4.75 and 5 x 4.5 Corvette Style Rotor
    • Quantity: 2

  7. P/N: C2-9F

    • Description: 1/2in-20 Hex Nut G8
    • Quantity: 4

  8. P/N: C2-9S

    • Description: 1/2in Sae Flat Washer G8 (Ea)
    • Quantity: 4
