Wilwood Street Performance FNSL6R BB Front Brake Kits (Hub), Drilled, Red Caliper for 58-70 GM

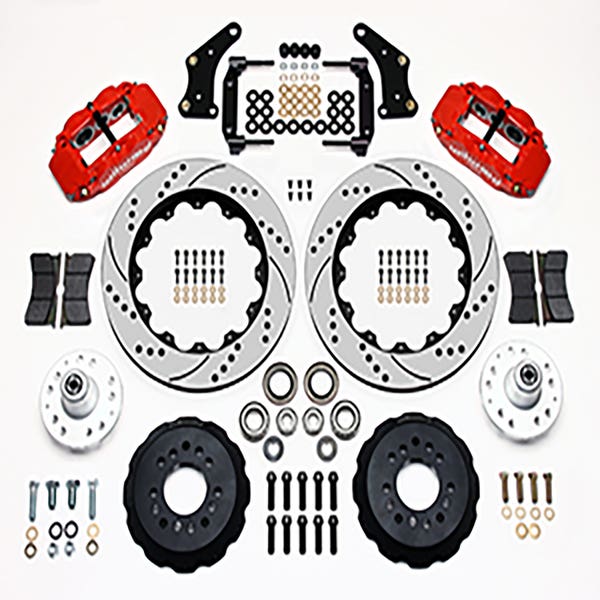

The Wilwood Street Performance FNSL6R BB Front Brake Kit (Hub), part #140-10284-DR, is made for 1958-1970 GM vehicles equipped with the Classic Performance Products Drop Spindle (P/N 30101). This kit offers technical upgrades in braking, including lightweight 6-piston Superlite 6R callipers for even clamp force, 14-inch ventilated and drilled rotors for steady cooling and fade resistance, and durable aluminium hubs for a precise fit and reduced unsprung weight. The included performance brake pads and premium-quality bearings contribute to lasting, dependable braking. With all hardware and shims supplied, the kit is designed for compatibility and easy alignment. Stainless steel braided brake hoses and proper adapters are recommended for integration with the calliper inlet fitting.

SPECS

- Fitment: 1958–1970 GM vehicles using Classic Performance Product Drop Spindle #30101
- Calipers: Wilwood Superlite 6R, 6-piston, radial mount
- Rotors: 14" diameter, vented, finned, drilled, with optional slotted variants
- Hardware: All included—brackets, shims, bolts, washers, dust caps, and hub hardware
- Pads: Wilwood BP-10 street performance pads
- Hub: Aluminum, with press-fit wheel studs and bearings
- Caliper Inlet Fitting: 1/8-27 NPT (requires new brake hose/adapters)
- Prop 65 Warning: Yes
- Brand: Wilwood Engineering

INSTALLATION SUMMARY

- Remove stock brake components from the spindle.
- Prep spindle by cleaning and deburring as needed.
- Install supplied calliper mounting brackets and hardware with red Loctite® 271, torqued to specification.
- Assemble and pack hub bearings with high-temp grease; install seals and preload bearings to 0.001”–0.007” end play.
- Secure rotor and hub assembly; mount calliper brackets and centre callipers using provided shims.
- Install callipers (ensure the largest pistons are at the rotor exit).
- Replace factory hoses with stainless steel braided hoses and adapters for 1/8-27 NPT fitting.
- Properly bleed the system and follow the break-in (‘bedding’) procedure for pads and rotors.
Installation requires a technician experienced with disc brake systems. Always test brakes at low speed before regular use.

FACTORY FIT NOTES

- Kit only fits Classic Performance Products Drop Spindle #30101.
- Confirm the hub stud pattern matches your wheels before starting.
- Ensure wheel-to-caliper clearance using the referenced diagram before installation.
- Factory rubber hoses will not fit; use stainless braided hoses with correct fittings.
- Hardware may require adjustment for vehicle-specific variances; check all parts before assembly.
- Removal of OEM calliper mounting “ears” may be required from the spindle; do not damage mounting holes.
- OEM master cylinder can work, but brake bias review is advised, especially after brake system upgrades.
- For modified or competition builds, follow the guidelines for master cylinder sizing and brake bias.
