Wilwood Street Performance AERO6 BB Front Brake Kits, Red, Drilled For Camaro/Nova, 67-72, 14.00

The Wilwood Street Performance AERO6 Big Brake Front Kit (Part #140-10920-DR) is built for high-demand applications, giving classic cars like the 1967-1969 Camaro and 1967-1974 Nova greater stopping power. The system features large-capacity AERO6 six-piston callipers and 14" vented, directional rotors for improved heat management and durability during repeated or heavy braking. These rotors direct airflow to keep temperatures down, reducing the risk of fade. Adjustable shim sets and spacers allow precise alignment on factory discs or drum spindles, while the kit’s components are made from durable steel and aluminium for long service life. High-performance brake pad compounds give better friction than stock, and all hardware needed for installation is included (except brake lines, which must be sourced separately). This kit is designed to work with larger wheels and tyres and is fully compatible with OE master cylinders and ABS functions.

KEY SPECIFICATIONS

- Fits: 1967-1969 Camaro, 1967-1974 Nova, 1964-1966 Chevy II (modification required), 1964-1972 Chevelle
- Calipers: Wilwood Aerolite 6R, 6 pistons, radial mount, red or black
- Rotors: 14” diameter, 1.25” thick, vented directional vanes; optional drilled/slotted
- Hubs: 5 x 4.50 or 5 x 4.75 bolt patterns included
- Brake Pads: BP-20 or BP-10 compound
- Caliper Inlet: 1/8-27 NPT thread (not compatible with OE hoses)

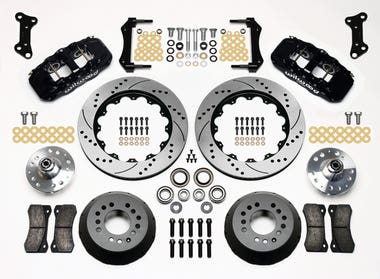

- Includes: Calipers, rotors, brackets, hub assemblies, shims, bearings, seals, and hardware (no brake lines)

INSTALLATION DETAILS

The kit is designed for installation on compatible disc or drum brake spindles. Some spindles may require minor modifications, like drilling mounting holes or removing unused calliper ears. All parts use adjustable shims and spacers for correct rotor and calliper alignment. Bearings must be packed with high-temperature grease, and hardware should be installed using the recommended torque specifications and red Loctite 271 on critical fasteners. You must supply and install new stainless steel braided brake lines, as OE lines will not fit the callipers. After assembly, bleed the system using recommended high-temp fluid and follow a controlled bedding-in process to ensure reliable performance. Wheel and rotor clearance should be checked before final assembly.

FACTORY FIT NOTES

- For 1967-1969 Camaro, 1967-1974 Nova, 1964-1966 Chevy II (requires modification), and 1964-1972 Chevelle (with compatible spindles)
- Fits disc or drum spindles; confirm version before installation
- Not compatible with original brake hoses; requires new flex lines and proper fittings
- Some spindle modifications (such as drilling or minor grinding) may be necessary
- Check wheel bolt pattern (5 x 4.50 or 5 x 4.75) and verify fit with wheels
- Calipers are left/right specific; the largest piston faces the rotor exit side
- Wheel and calliper clearance must be confirmed before the final installation
