Wilwood Street Performance DPLP Rear P-Brake Kits, Drilled For C10 Chevy, 5-Lug, 2.42 Offset, 1-PC 11.00
Part #
Vendor Takes 7 Days to Ship140-11385-D
$1,215.00
Rear, Disc/ Drum, C10 Chevy, 5-Lug, 2.42 Offset, 1-PC 11.00, SRP, Black
Upgrade the braking system on your Chevy C10 or GMC truck equipped with 5-lug, large rear axles (2.42-inch offset) using this Wilwood rear disc parking brake kit. Engineered to fit 14- to 15-inch wheels, the kit is an ideal solution for vehicles requiring a parking brake assembly.

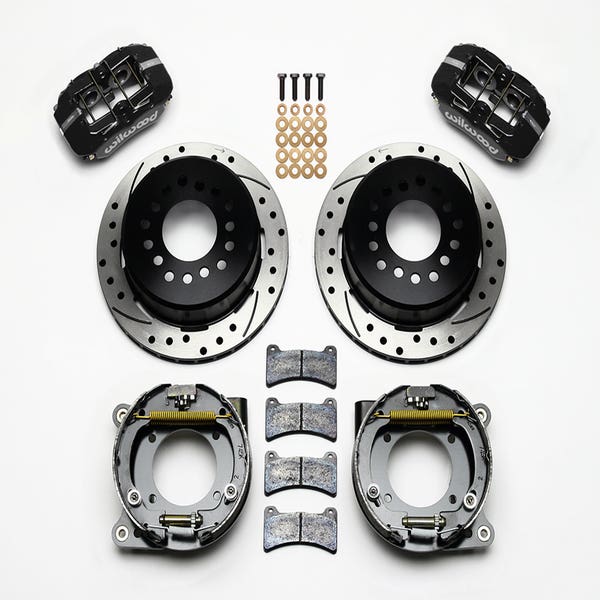

The Wilwood kit features forged Dynapro Low-Profile four-piston calipers (available in black or red), high-friction pads, and 11-inch SRP drilled and slotted rotors with black electro-coat for improved braking consistency, heat dissipation, and corrosion resistance. The internal shoe parking brake design ensures strong holding power without added bulk. All necessary hardware, including bolts, washers, and shims for proper caliper alignment, is included.
KEY SPECIFICATIONS
- Rotor Diameter: 11.00″ with .81″ thickness
- Rotor Offset: 2.42″
- Axle Center Register Diameter: 3.11″
- Stud Size: 1/2″ recommended (OEM studs may be smaller)
- Shim Thickness: 0.035″ increments
- Torque for Caliper Mounting: 40 ft-lb with red Loctite® 271
- Caliper Inlet Fitting: 1/8-27 NPT thread
INSTALLATION OVERVIEW
The installation is designed for experienced installers familiar with disc brake systems. Before starting, check all kit contents against the provided parts list. Key steps include:
- Verifying the wheel clearance using the Wheel Clearance Diagram.
- Installing the bracket assembly to the axle housing flange and then aligning the rotor/hat with the axle studs.
- Mounting the calliper on the bracket with the supplied bolts, washers, and shims.
- Route and secure parking brake cables (note that these are not included in the kit) and bleed the brake system carefully to clear any air.
- Always check that the braking components are correctly installed and undergo regular inspection.
FITMENT AND COMPATIBILITY
This kit is specifically designed for 1963–1987 Chevy C-10 vehicles with a 5-lug rear axle. Before installation, verify the axle housing flange mounting pattern, shock absorber clearance, and stud sizes for compatibility. Be aware that:
- The kit does not include hydraulic lines, parking brake cables, or additional hardware, which may be needed based on your vehicle’s specific setup.
- Some OEM vehicles may require modifications such as upgrading wheel studs or adjusting brake hose routing for proper fitment.
The Wilwood kit features forged Dynapro Low-Profile four-piston calipers (available in black or red), high-friction pads, and 11-inch SRP drilled and slotted rotors with black electro-coat for improved braking consistency, heat dissipation, and corrosion resistance. The internal shoe parking brake design ensures strong holding power without added bulk. All necessary hardware, including bolts, washers, and shims for proper caliper alignment, is included.
KEY SPECIFICATIONS
- Rotor Diameter: 11.00″ with .81″ thickness
- Rotor Offset: 2.42″
- Axle Center Register Diameter: 3.11″
- Stud Size: 1/2″ recommended (OEM studs may be smaller)
- Shim Thickness: 0.035″ increments
- Torque for Caliper Mounting: 40 ft-lb with red Loctite® 271
- Caliper Inlet Fitting: 1/8-27 NPT thread
INSTALLATION OVERVIEW
The installation is designed for experienced installers familiar with disc brake systems. Before starting, check all kit contents against the provided parts list. Key steps include:
- Verifying the wheel clearance using the Wheel Clearance Diagram.
- Installing the bracket assembly to the axle housing flange and then aligning the rotor/hat with the axle studs.
- Mounting the calliper on the bracket with the supplied bolts, washers, and shims.
- Route and secure parking brake cables (note that these are not included in the kit) and bleed the brake system carefully to clear any air.
- Always check that the braking components are correctly installed and undergo regular inspection.
FITMENT AND COMPATIBILITY
This kit is specifically designed for 1963–1987 Chevy C-10 vehicles with a 5-lug rear axle. Before installation, verify the axle housing flange mounting pattern, shock absorber clearance, and stud sizes for compatibility. Be aware that:
- The kit does not include hydraulic lines, parking brake cables, or additional hardware, which may be needed based on your vehicle’s specific setup.
- Some OEM vehicles may require modifications such as upgrading wheel studs or adjusting brake hose routing for proper fitment.
| Product Name | Wilwood Street Performance DPLP Rear P-Brake Kits, Drilled For C10 Chevy, 5-Lug, 2.42 Offset, 1-PC 11.00 | SKU | 140-11385-D |
| Vendor SKU | 140-11385-D | Notes For This Part | This product may ship directly from the manufacturer to you. |
| Prop65 | Yes | Brand | Wilwood Engineering |
| Product Location | Rear | Product Type | Rear Disc Brake Kits |
Write Your Own Review
Customer Questions
There is no Attribute Value.
Other Available Options

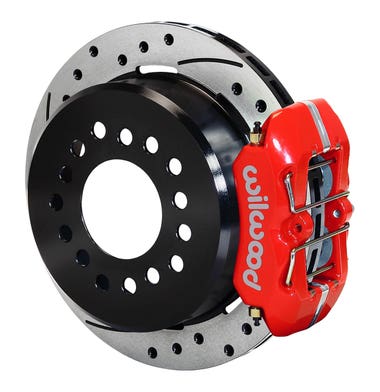

Rear, Disc/ Drum, C10 Chevy, 5-Lug, 2.42 Offset, 1-PC 11.00, SRP, Red
