Street Beast Complete HydraStop Kit for 1947-53 Chevy Truck

High-performance CPP HydraStop braking system
Be the first to review this product
Part #
4753HBK-SB
Product Takes 7 Days to Ship
$979.00

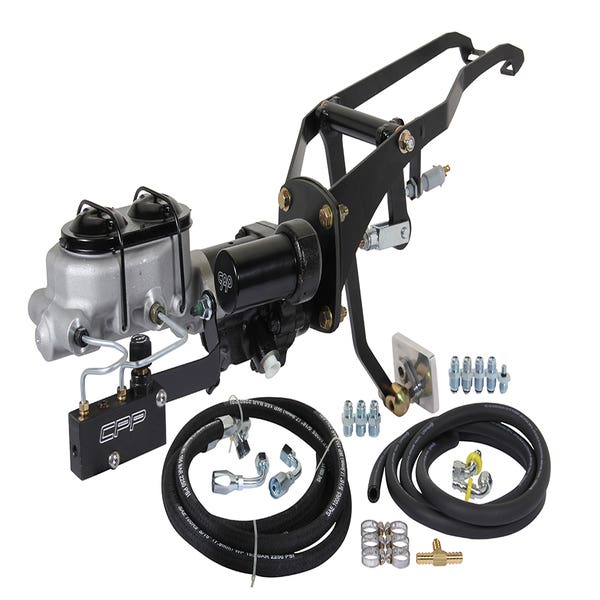

1947-53 Chevy Truck Street Beast HydraStop complete hydraulic assist brake kit with firewall mounted swing pedal
Contact Support . Terms & Conditions
Add to Compare
Prop 65 warning
The CPP Street Beast HydraStop Kit is developed for 1947-53 Chevy Truck platforms and provides a firewall mounted hydraulic assist solution for Advance Design era builds. These early trucks often transition from manual brakes to modern disc systems and upgraded drivetrains that demand improved stopping performance. Hydraulic assist replaces traditional vacuum boosters and uses steering system pressure to produce up to 1800 psi at the wheels for dependable braking force. This complete Street Beast kit includes a black direct mount aluminum bracket, rubber high pressure hoses with return lines, AN6 fittings installed, 1 1/8 inch bore master cylinder, mounting hardware, and black accumulator cover. Designed specifically for firewall mounted swing pedal applications in 1947-53 Chevy and GMC trucks. Each HydraStop system is built new and supported by a limited lifetime warranty when proper filtration is installed.
More Information
Product Name Street Beast Complete HydraStop Kit for 1947-53 Chevy Truck SKU 4753HBK-SB
Brake Booster Finish Black Master Cylinder Bore Size 1.125
Master Cylinder Finish Black Master Cylinder Material Aluminum
Master Cylinder Type Aluminum W/ Black lid, CPP Left Side Ports Hardware Included Yes
Master Cylinder Lid Style Black Corvette Style Proportioning Valve Type Adjustable Proportioning Block Left Hand
Bracket And Lines Included Yes Proportioning Valve Included Yes
Brake Light Switch Included Yes Brake Booster Kit Type Complete Booster Kits
Master Cylinder Included Yes Accumalator Cover Included Yes
Brake Pedal Extension Rod Included Yes Hydraulic Hose Kit Included Yes
Bracket Finish Black Bracket Material Aluminum
Warranty Yes Prop65 Yes
Brand CPP HydraStop Mounting Location Firewall Mount
Product Type Hydraulic Brake Assist Kits
Write Your Own Review
Only registered users can write reviews. Please Sign in or create an account
Customer Questions
No Questions
Did you find what you were looking for?
4753FBB instructions
HAHK-S _HAHK-R Instructions_6.18
HydraStop Instruction Sheet_1.13
HydraStop Line Drawing

This kit includes:

  1. Fixed

  2. P/N: I-HYDRA-BB

    • Description: HYDRA-BB Instructions
    • Quantity: 1

  3. P/N: 13049-B

    • Description: Hydraulic Brake Assist Bracket Black
    • Quantity: 1

  4. P/N: 4753FBB

    • Description: Firewall Brake Pedal
    • Quantity: 1

  5. P/N: C5-7F12G8

    • Description: 3/8in-24 X 1-1/4in Nf Hex Cap G8 (Ea)
    • Quantity: 4

  6. P/N: C2-7F

    • Description: 3/8in-24 Hex Nut G8 (Ea)
    • Quantity: 4

  7. P/N: C2-7S

    • Description: 3/8in Sae Flat Washer G8 (Ea)
    • Quantity: 8

  8. P/N: BP5100

    • Description: Black HydraStop Accumulator Cover
    • Quantity: 1

  9. P/N: CPP-UHBA1

    • Description: Hydraulic Brake Assist Kit
    • Quantity: 1

  10. P/N: HAHK-R

    • Description: HydraStop Rubber Hydraulic Hose Kit
    • Quantity: 1

  11. P/N: M-C118-APBLF

    • Description: 1 1/8in Bore Left Side Port Aluminum Power Master Cylinder W/Black Lid
    • Quantity: 1

  12. P/N: PVKS-APVDB

    • Description: Proportioning Valve W/Bracket & Lines Black Driver's Side, Firewall Mount Adjustable, 1/2x20 & 9/16x18 Ports
    • Quantity: 1

  13. P/N: H-4753FBB

    • Description: 4753Fbb Hardware Kit
    • Quantity: 1

  14. P/N: CPP-BK

    • Description: Bleeder Kit
    • Quantity: 1

  15. P/N: C2-7L

    • Description: 3/8in Split Lock Washer G8 (Ea)
    • Quantity: 4
