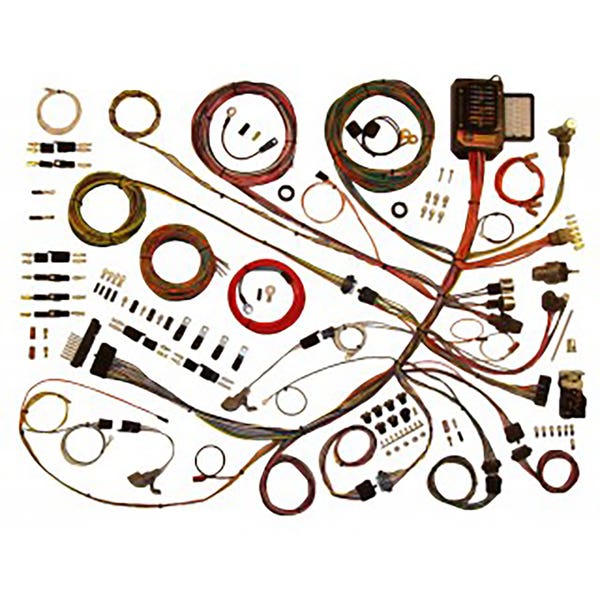

American Autowire Classic Update Kit for 1961-66 Ford F100 Truck

The American Autowire Classic Update Kit for 1961-66 Ford F100 trucks (Part #510260) gives you a complete solution for modernising your truck’s wiring. This kit is engineered for higher electrical loads with extra circuits not found on the original harness. It supports upgrades like high-output alternators (internally regulated or single-wire), electric speedometers, fuel injection, and aftermarket accessories. The kit provides factory-style crimped terminals, colour-coded wires with printed labels for every circuit, and a 175-amp megafuse, along with a 6-gauge power cable, to handle higher charging demands. Multiple relay, fuse, and circuit protection points are integrated for modern safety. Included adapters make it easy to connect either your stock or aftermarket ignition, gauge cluster, and steering column. Separate wiring bags, detailed instructions, and extra-long leads enable custom routing to accommodate modified setups while maintaining reliable power and signal delivery.

SPECS AT A GLANCE

- Vehicle fit: 1961–1966 Ford trucks
- Circuit protection: Fuses from 6A to 30A for individual components
- Charging: Supports modern alternators, 175-amp megafuse, 6-gauge main feed
- Separate harness assemblies: Dash/main, gauge, front lighting, rear body, alternator/power
- Labeling: Color-coded and printed wires for each circuit
- Materials: Factory-style connectors, terminals, grommets, and mounting clamps
- Accessory support: Electric speedometer, EFI, modern A/C, power accessories
- Adapters: For GM and Ford column/ignition switches, stock or aftermarket gauges

INSTALLATION BASICS

- Disconnect the battery before starting and reconnect only when all wiring and grounds are complete
- Use supplied firewall grommets and clamps for proper harness routing and protection
- Mount fuse panel under the dash, near the steering column
- Instructions include full-colour code and terminal matching charts
- Proper grounding is necessary: battery to block, block to frame, body to frame
- All wires organised in separate labelled bags for logical installation steps
- Accessory and lighting wiring supported, including special provisions for VSS, electric choke, and other modern components

FACTORY FIT AND COMPATIBILITY NOTES

- Specifically fits 1961-66 Ford trucks
- Works with both GM and Ford-style steering columns and ignition switches (adapters included)
- Connects to stock gauges and supports aftermarket electric gauges with optional kit
- Wiring is set up for both original and aftermarket lighting, including LED tail lamps
- Requires modern high-output alternator (not compatible with original generator/alternator without adapters)
- Battery cable and some light bulbs not included; most hardware and terminals for installation are supplied
