American Autowire Classic Update Kit, Tailgate Power Window Add-On Kit for 1980-86

This Tailgate Power Window Add-On Kit (Part #510486) is made for 1980–1986 Ford Broncos and Ford Trucks already running the American Autowire Classic Update Kit (Part #510724). It connects the factory rear window switch to the updated wiring harness, keeping the original switch function and appearance while improving reliability through modern wiring.

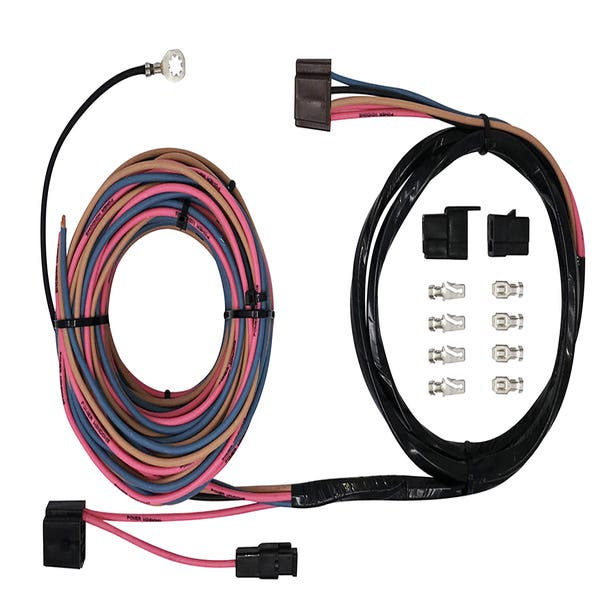

The kit includes the required rear power window harness, connectors, and terminals to support the dash-mounted rear window switch and horizontal tailgate switch layout. The harness is built to match the original layout and color scheme, allowing power and control wires—pink, tan, and light blue—to be routed accurately between the dash and the rear of the vehicle. This kit does not replace the factory tailgate harness or switches but adds the necessary connection points for Classic Update system compatibility.

KEY SPECIFICATIONS

- Fitment: 1980–1986 Ford Broncos and Ford Trucks using Classic Update Kit #510724
- Prop65: Yes
- Rear Power Window Harness A
- 3-way female connector and 3-way male connector
- Set of five female terminals and five male terminals

INSTALLATION OVERVIEW

Begin by removing the original mating plug on the dash/main harness and connecting the provided 6-position connector that includes two pink wires. A 4-inch pink pigtail wire is included for optional 12V ignition power and can be connected using terminals from the dash harness’s loose parts kit. Next, plug the Rear Power Window Harness A into the original dash-mounted rear window switch, located near the heater or A/C controls. Connect the included black wire with a ring terminal to a clean ground location.

To complete the connection to the tailgate, replace the original molded rubber connector on the factory tailgate harness with the new male terminals provided. Use the included connectors and terminals to link breakaway connections along the frame rail, routing the wiring from the dash through the firewall gap to the rear of the Bronco. Follow the included wiring guide to match color codes correctly: pink for power, tan for window down, and light blue for window up. All connections must be confirmed for position and function before applying power.

FITMENT AND COMPATIBILITY

This kit is for use only with 1980–1986 Ford Broncos and Trucks that already have the Classic Update Kit (Part #510724) installed. It supports the use of the original dash-mounted and tailgate rear window switches, which are not included. This is not a replacement harness; it is a compatibility add-on for proper power window function using factory controls.
