Front Coilover Conversion Kit w/ Upper and Lower Arms, 1963-70 Chevy 1/2 Ton

Name: Front Coilover Conversion Kit w/ Upper and Lower Arms, 1963-70 Chevy 1/2 Ton
SKU: 6387FCO-K6370
Price: 1950 USD
Availability: InStock

Be the first to review this product

Part #

6387FCO-K6370

Product Takes 7 Days to Ship

$1,950.00

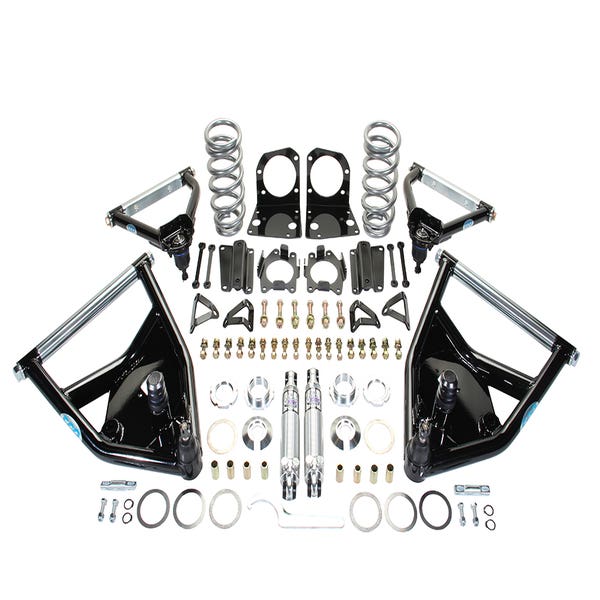

1963-70 Chevy Truck, Upper and Lower Tubular Arms W/ D-Spec Bushings, OEM 63-70 Ball Joints, Dual Adjustable Coil over Kit W/ Spanner Wrench & Thrust bearing kit

Contact Support . Terms & Conditions

Product Overview

Upgrade your 1963-1970 C10's suspension with our Front Coil-Over Conversion Kit, fully adjustable from standard height to a 3” drop, enabling a total 5-1/2” drop when paired with our CPP Modular Drop Spindles. These innovative Coil-Over Control Arms are designed for easy installation, making the addition of coil-overs straightforward. The kit features dual adjustable shocks with separate adjustments for compression and rebound, CNC-bent and laser-cut mounting brackets, and Grade 8 hardware for a secure and simple bolt-on installation. Included are a spanner wrench and thrust bearing kit for effortless spring load adjustments.

Product Specs

More Information
Product Name	Front Coilover Conversion Kit w/ Upper and Lower Arms, 1963-70 Chevy 1/2 Ton	SKU	6387FCO-K6370
Hardware Included	Yes	Coil Over Position	Front
Front Coil Over Lower Mount	T-Bar-Poly	Front Coil Over Upper Mount	Eye
Spanner Wrench Included	Yes	Thrust Bearing Kit Included	Yes
Spring Finish	Silver Powder Coat	Internal Design	Twin Tube
Front Height Adjustment Max	-2.5	Front Height Adjustment Min	-1
Front Spring Rate	550	Single Or Double Adjustable	Doudle Adjustable
Rear Shocks Included	No	Rear Coil Over Included	No
Front Coil Over Included	Yes	Shock Body Material	Billet Aluminum
Front Shocks Included	Yes	Prop65	Yes
Brand	CPP
