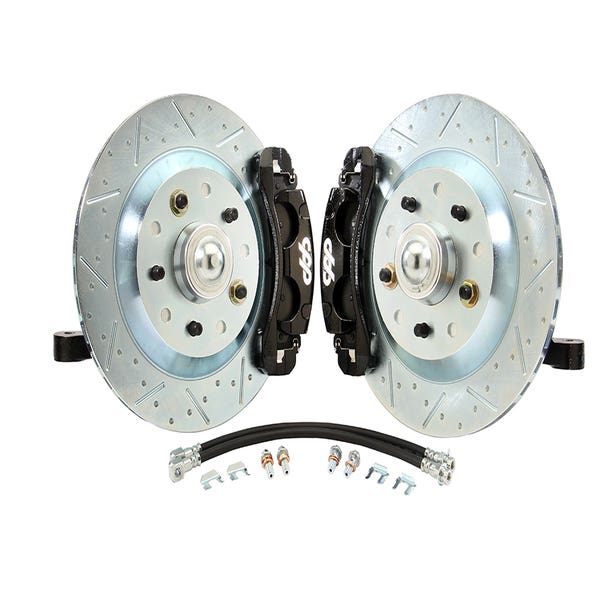

13 in. Front Big Brake Kit w/ 2.5 in. Modular Drop Spindles, Ball Joints and Tie Rods for 1963-1970 Chevy 1/2 Ton Truck, 5 x 5

High-strength drop spindles by CPP Modular
Be the first to review this product
Part #
6387SWBK-55213
Product Takes 7 Days to Ship
$1,374.00
1963-1970 Chevy 1/2 Ton Truck, 13 in. Drilled and Slotted Rotors, 52mm Twin Piston Calipers, 5 x 5, Includes Ball Joints and Tie Rod Ends
Contact Support . Terms & Conditions
Add to Compare
Prop 65 warning
The 13 in. Front Big Brake Kit, part number 6387SWBK-55213, fits 1963-1970 Chevy 1/2 Ton Truck applications with a 5 x 5 bolt pattern. This system includes 13 in. drilled and slotted rotors with aluminum hubs and slip on rotor configuration and twin piston cast iron calipers with 52mm pistons. The kit features 2.5 in. modular drop ductile iron spindles and includes ball joints, inner tie rods, outer tie rods and tie rod sleeves. Rubber brake hoses and mounting hardware are included.
More Information
Product Name 13 in. Front Big Brake Kit w/ 2.5 in. Modular Drop Spindles, Ball Joints and Tie Rods for 1963-1970 Chevy 1/2 Ton Truck, 5 x 5 SKU 6387SWBK-55213
Bolt Pattern 5 x 5, 5x5 Brake Hose Included Yes
Front Brake Hose Type Rubber Front Brake Hoses Included Yes
Front Caliper Finish Black Powder Coated Front Caliper Material Cast iron
Front Caliper Piston Qty 2 Front Disc Brake Line Conversion Included Yes
Rotor Hub Type Aluminum Hub and Slip on Rotor Rotor Style Blue Zinc, Cross-Drilled, Gas Slotted, Vented
Front Spindle Included Yes Spindle Type Modular Drop Spindle
Hardware Included Yes Spindle Finish Black
Spindle Material Ductile Iron Spindle Drop Height 2.5
Front Caliper Piston Diameter 52 Inner Tie Rods Included Yes
Outer Tie Rods Included Yes Tie Rod Sleeves Included Yes
Spindles Included Yes Prop65 Yes
Brand CPP Modular Product Location Front
Front Rotor Diameter 13 Mounting Location Front
Product Type Front Disc Brake Kits
Write Your Own Review
Only registered users can write reviews. Please Sign in or create an account
Customer Questions
No Questions
Did you find what you were looking for?

There are no tech documents.

This kit includes:

  1. Fixed

  2. P/N: 7387FBH-S10

    • Description: 23in Long Stainless Steel Front Brake Hose, 10mm Banjo to 3/8in-24 Female, Pair
    • Quantity: 1

  3. P/N: K100132

    • Description: Aluminum Machine Hub Ea
    • Quantity: 2

  4. P/N: LM48548

    • Description: A-5 Bearing Only, Sold as Each
    • Quantity: 2

  5. P/N: LM12649

    • Description: A-3 Bearing Only, Sold as Each
    • Quantity: 2

  6. P/N: 8871

    • Description: Grease Seal, Sold as Each
    • Quantity: 2

  7. P/N: BBCFR13-B

    • Description: Front 13in Big Brake Caliper Left Hand Or Right Hand Black
    • Quantity: 2

  8. P/N: CP30106-4

    • Description: 1973-87 C-10 2.5in Modular Drop Spindles, Pair
    • Quantity: 1

  9. P/N: CP4SC-SAB

    • Description: Aluminum Tie Rod Sleeves Black to connect a 63-70 Tie Rod end to a 73-87 Tie Rod End
    • Quantity: 1

  10. P/N: CPPHWF-B

    • Description: Dust Cap Hardware Kit Large Cap 2in Plain
    • Quantity: 1

  11. P/N: ES350L

    • Description: Tie Rod End for 65-70 C10, 5/8-18 7.19in Left Outer
    • Quantity: 2

  12. P/N: ES409R

    • Description: Tie Rod End for 73-87 Chevy Truck Outer Tie Rod End
    • Quantity: 2

  13. P/N: FA1014

    • Description: Lower Ball Joint for a 1971-1987 Chevy 1/2 Ton Truck C10
    • Quantity: 2

  14. P/N: K100026

    • Description: 13in Brake Caliper Bracket & Hardware Kit
    • Quantity: 1

  15. P/N: ASSEMBLE

    • Description: Assemble Part
    • Quantity: 1

  16. P/N: FA903

    • Description: Upper Ball Joint for 1973-1987 Chevy 1/2 Ton Truck, C10, Upper
    • Quantity: 2

  17. P/N: GXZ-31884

    • Description: Front Rotors zinc plated 13in Corvette Drilled/Slotted, 5 x 5 and 5 x 5.5 CPP Big Brake Rotor
    • Quantity: 2

  18. P/N: I-HUBS

    • Description: Aluminum Hubs Instructions
    • Quantity: 1
