CPP AFX Series Front Disc Brake Kit with C7 Hubs, Stock Height Spindles, 1964–72 A Body, Red Calipers

High-performance CPP Corvette-Style hub kits
Be the first to review this product
Part #
6474SWBK-STC7R
In Stock
$979.00

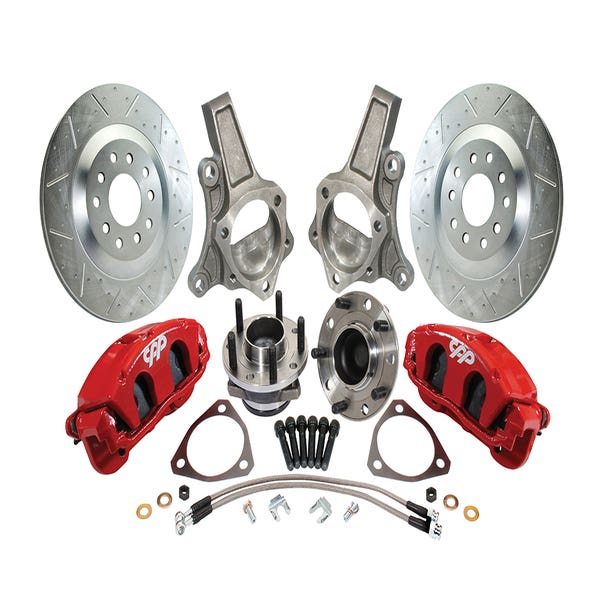

AFX Series Front Disc Brake Kit for 1964–72 GM A Body, 1967–69 F Body, and 1968–74 X Body Applications Featuring Stock Height Spindles, C7 Sealed Hubs, 13 Inch Drilled and Slotted Rotors, and C5 Twin Piston Red Calipers

Long Descr
Contact Support . Terms & Conditions
Add to Compare
Prop 65 warning
The CPP AFX Series front disc brake kit, part number 6474SWBK-STC7R, is engineered for classic GM cars using a direct fit AFX tall spindle. The AFX spindle is a tall spindle design that improves suspension geometry and handling without altering ride height. This stock height AFX spindle is paired with a Corvette style sealed hub assembly based on a C7 bearing design featuring a double row ball bearing arrangement with a larger outer bearing row to improve rigidity, bearing life, and braking stability while eliminating flex at the factory spindle pin.

This kit includes 13 inch drilled and slotted rotors paired with C5 twin piston calipers finished in red, along with stainless steel brake hoses for consistent braking performance and pedal feel. The C7 hub features a 5 x 4.75 bolt pattern with a 10 hole layout, supplied with 7/16 x 20 studs and provisions for optional 1/2 x 20 wheel studs.

A minimum 17 inch wheel is required, with the brake package ideally suited for 18 to 20 inch wheel combinations. This brake kit is compatible with 1964–72 GM A Body, 1967–69 F Body, and 1968–74 X Body applications.
More Information
Product Name CPP AFX Series Front Disc Brake Kit with C7 Hubs, Stock Height Spindles, 1964–72 A Body, Red Calipers SKU 6474SWBK-STC7R
Bolt Pattern 5x4.75 Front Brake Hose Type Stainless Steel
Front Caliper Finish Red Powder Coated Front Caliper Material Aluminum
Front Caliper Piston Qty 2 Rotor Hub Type C7 Hub with Slip on Rotor
Front Spindle Included Yes Front Caliper Piston Diameter 42
Brand CPP Corvette Style Series Front Rotor Diameter 13
Write Your Own Review
Only registered users can write reviews. Please Sign in or create an account
Customer Questions
For this kit how many inches do I need to have the wheels?
You will need a minimum of 17 inch wheel and this kit does have a caliper overhang of .75”
Read More
are these tall spindles ? to move the top ball joint up for correcting the camber on an A body?
Our AFX spindles are taller by just over one inch to improve suspension geometry.
Read More
Did you find what you were looking for?
6474SWBK-STC5 Instructions

This kit includes:

  1. Fixed

  2. P/N: K100226

    • Description: Spindle Hardware
    • Quantity: 1

  3. P/N: C1-9LHC

    • Description: 1/2in High Collar Plain Lock Washer G5
    • Quantity: 6

  4. P/N: I-6474SWBK-STC5/7

    • Description: 6474SWBK-STC5 and 6474SWBK-STC7 Instructions
    • Quantity: 1

  5. P/N: C2-8F

    • Description: 7/16in-20 Hex Nut G8
    • Quantity: 4

  6. P/N: BHK-S10

    • Description: 16in Front Brake Hose Kit, 10mm Banjo 3/8x24, Stainless Steel
    • Quantity: 1

  7. P/N: 30013

    • Description: A-Body Tall C5 Stock Spindle Set Casting (Pr)
    • Quantity: 1

  8. P/N: 743334U-R

    • Description: Red C5 Loaded Caliper - Left and Right Hand Side, Sold as a Pair
    • Quantity: 2

  9. P/N: 35041-R1

    • Description: CPPs Corvette Style Hubs
    • Quantity: 2

  10. P/N: GXZ-31877

    • Description: Front Rotors zinc plated 13in Corvette Drilled/Slotted, 5x 4.75 and 5 x 4.5 Corvette Style Rotor
    • Quantity: 2

  11. P/N: C2-8S

    • Description: 7/16in Sae Flat Washer G8
    • Quantity: 4
