Front Big Brake Kit w/ 2.5" X-10 Modular Drop Spindles, 1971-72 C10

High-performance CPP X10 Series spindle upgrade
Be the first to review this product
Part #
7172SWBK-X10-5
In Stock
$1,199.00
1971-72 C10, 5x5, W/ X-10 Modular 2.5" Drop Spindles, 13" Front Rotors, 52MM Twin Piston Black Calipers, Kit
Contact Support . Terms & Conditions
Add to Compare
Prop 65 warning
The 1971-72 C10 eXtreme 2.5” Drop Modular™ spindle is engineered to deliver a robust combination of late-model strength and advanced technology. Designed for those seeking a lowered stance while accommodating 17” or larger wheels, this spindle features a stronger, bolt-in sealed bearing hub assembly for effortless installation, eliminating the need for grease packing and bearing preload adjustment.

This comprehensive kit includes 13" drilled and slotted rotors with twin piston 52MM calipers, stainless steel hoses, outer tie rod ends, and upper ball joints, ensuring compatibility and performance. Available in both 5-lug and 6-lug truck bolt patterns, this spindle requires the use of 17” or larger wheels for optimal performance. For the 1971 to 1972 C10 kits, you’ll receive the outer tie rod ends and upper ball joints.
More Information
Product Name Front Big Brake Kit w/ 2.5" X-10 Modular Drop Spindles, 1971-72 C10 SKU 7172SWBK-X10-5
Bolt Pattern 5x5 Brake Hose Included Yes
Front Brake Hose Type Rubber Front Caliper Finish Black Powder Coated
Front Caliper Material Cast iron Front Caliper Piston Qty 2
Rotor Hub Type X-10 Sealed Bearing and Slip on Rotor Rotor Style Blue Zinc, Cross-Drilled, Gas Slotted, Vented
Front Spindle Included Yes Spindle Type X-10 Modular Drop Spindle
Wheel Offset -0.5 Spindle Finish None
Spindle Material Ductile Iron Spindle Drop Height 2.5
Front Caliper Piston Diameter 52 Spindles Included Yes
Prop65 Yes Brand CPP X10 Series
Product Location Front Front Rotor Diameter 13
Write Your Own Review
Only registered users can write reviews. Please Sign in or create an account
Customer Questions
No Questions
Did you find what you were looking for?

There are no tech documents.

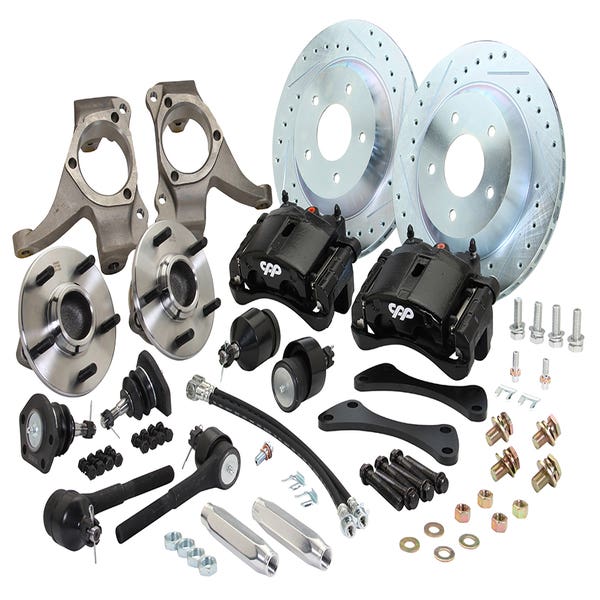

This kit includes:

  1. Fixed

  2. P/N: FA903

    • Description: Upper Ball Joint for 1973-1987 Chevy 1/2 Ton Truck, C10, Upper
    • Quantity: 2

  3. P/N: ES409R

    • Description: Tie Rod End for 73-87 Chevy Truck Outer Tie Rod End
    • Quantity: 2

  4. P/N: CP30021

    • Description: 73-87 X-10 2.5in Modular Drop Spindles, Pair
    • Quantity: 1

  5. P/N: GXZ-31884

    • Description: Front Rotors zinc plated 13in Corvette Drilled/Slotted, 5 x 5 and 5 x 5.5 CPP Big Brake Rotor
    • Quantity: 2

  6. P/N: BHK-R10

    • Description: 16in Front Brake Hose Kit, 10mm Banjo, 3/8in-24, Rubber
    • Quantity: 1

  7. P/N: 35033

    • Description: X10 Wheel Hub Assembly, 5x5 Sealed Bearing, 1/2in-20 Bolts, Sold Individually
    • Quantity: 2

  8. P/N: 47084

    • Description: M14 1.5 X 70Mm Hex Head Flange Bolt Grade 8 Black Zinc
    • Quantity: 6

  9. P/N: C2-9F

    • Description: 1/2in-20 Hex Nut G8
    • Quantity: 4

  10. P/N: C2-9S

    • Description: 1/2in Sae Flat Washer G8 (Ea)
    • Quantity: 4

  11. P/N: DNA

    • Description: Parts Come Packaged Separately - Not Assembled
    • Quantity: 1

  12. P/N: K100026

    • Description: 13in Brake Caliper Bracket & Hardware Kit
    • Quantity: 1

  13. P/N: BBCFR13-B

    • Description: Front 13in Big Brake Caliper Left Hand Or Right Hand Black
    • Quantity: 2
