CPP CS Series Front Disc Brake Kit with C7 Hubs, Stock Height Spindles, 1978-81 G Body, Red Calipers
Part #
Product Takes 7 Days to Ship7881SWBK-SC7R
$979.00

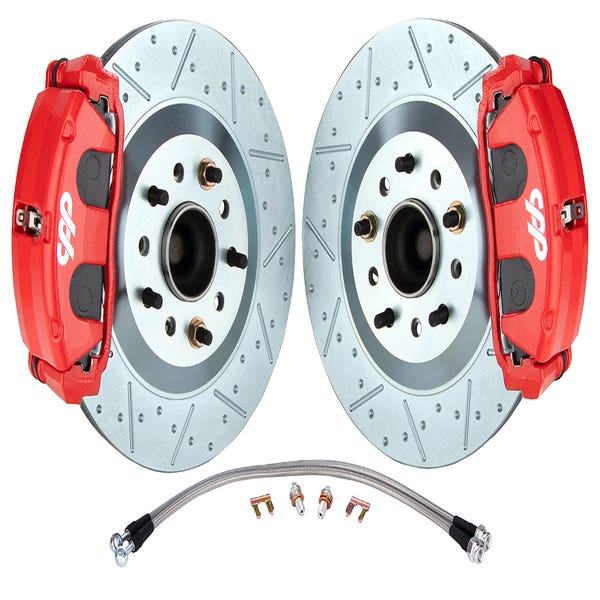

CS Series Front Disc Brake Kit for 1978-81 G Body Applications Featuring Stock Height Corvette Style Spindles, C7 Sealed Hubs, 13 Inch Drilled and Slotted Rotors, and C5 Twin Piston Red Calipers
The CPP CS Series front disc brake kit, part number 7881SWBK-SC7R, is engineered for classic GM cars using a direct fit Corvette style spindle designed to retain proper suspension and steering geometry. The stock height CS spindle is paired with a Corvette style sealed hub assembly based on a C7 bearing design featuring a double row ball bearing arrangement with a larger outer bearing row to improve rigidity, bearing life, and braking stability while eliminating flex at the factory spindle pin.
This kit includes 13 inch drilled and slotted rotors paired with C5 twin piston calipers finished in red, along with stainless steel brake hoses for consistent braking performance and pedal feel. The C7 hub features a 5 x 4.75 bolt pattern with a 10 hole layout, supplied with 7/16 x 20 studs and provisions for optional 1/2 x 20 wheel studs.
A minimum 17 inch wheel is required, with the brake package ideally suited for 18 to 20 inch wheel combinations. This brake kit is compatible with 1978-81 G Body applications.
This kit includes 13 inch drilled and slotted rotors paired with C5 twin piston calipers finished in red, along with stainless steel brake hoses for consistent braking performance and pedal feel. The C7 hub features a 5 x 4.75 bolt pattern with a 10 hole layout, supplied with 7/16 x 20 studs and provisions for optional 1/2 x 20 wheel studs.
A minimum 17 inch wheel is required, with the brake package ideally suited for 18 to 20 inch wheel combinations. This brake kit is compatible with 1978-81 G Body applications.
Write Your Own Review
Customer Questions
There are no tech documents.
This kit includes:
-
Fixed
-
P/N: 35041
- Description: C7 Wheel Hub Assembly (Ea)
- Quantity: 2
-
P/N: BHK-S10
- Description: 16in Front Brake Hose Kit, 10mm Banjo 3/8x24, Stainless Steel
- Quantity: 1
-
P/N: CP30016
- Description: Corvette Style Stock Height Disc Brake Spindles
- Quantity: 1
-
P/N: 743334U-R
- Description: Red C5 Loaded Caliper - Left and Right Hand Side, Sold as a Pair
- Quantity: 2
-
P/N: GXZ-31877
- Description: Front Rotors zinc plated 13in Corvette Drilled/Slotted, 5x 4.75 and 5 x 4.5 Corvette Style Rotor
- Quantity: 2
-
P/N: C2-8S
- Description: 7/16in Sae Flat Washer G8
- Quantity: 4
-
P/N: C2-8F
- Description: 7/16in-20 Hex Nut G8
- Quantity: 4
Frequently bought together

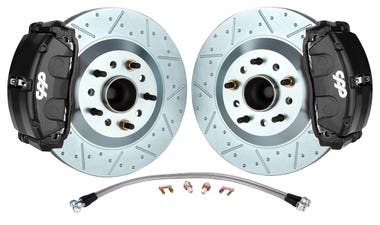

CS Series Front Disc Brake Kit for 1978-81 G Body Applications Featuring Stock Height Corvette Style Spindles, C7 Sealed Hubs, 13 Inch Drilled and Slo...
