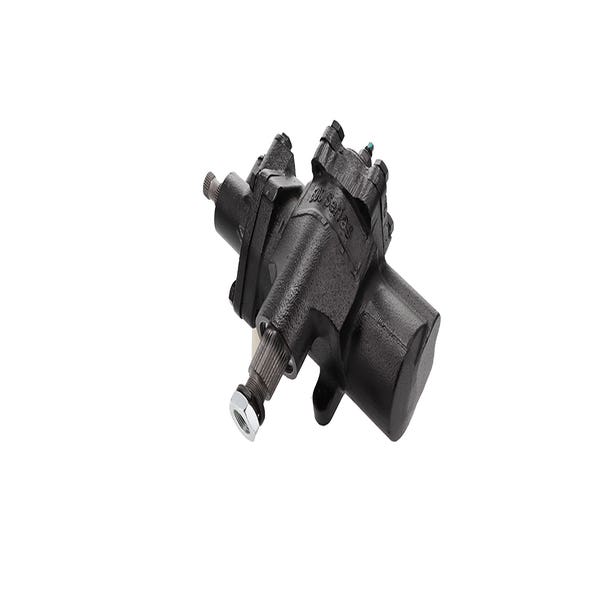

500 Series Power Steering Conversion Box 1964-72 Chevy Midsize
Part #
CP50004
In Stock
$449.00
1964-72 Chevy Midsize, 1967-1979 Chevy Camaro, 1968-1974 Chevy Nova, 1965-1976 Chevy Fullsize, 1978-1987 G-Body, 59-76 Caddy, 14-1 Ratio, 3.5 Turn to Turn, 34 x 30 Splined
The CP50004 500 Series Power Steering Conversion Box incorporates late-model steering technology with a 14:1 ratio and all new components. This conversion box is designed to bolt directly to your vehicle's frame, eliminating the need for additional brackets or adapters. It enhances your driving experience by providing a modern, tight steering feel, ensuring improved handling and control across a wide range of GM mid-size vehicles
| Product Name | 500 Series Power Steering Conversion Box 1964-72 Chevy Midsize | SKU | CP50004 |
| Gear Box Type | Power | Ratio | 14-1 |
| Pitman Arm Included | No | Pitman Arm Shaft Size | 1 1/4 GM with 32 Splines and 4 Master Splines |
| Input Shaft | 3/4 x 30 | Pressure Port | 11/16 x 18 Flare (Located Closest to the Engine) |
| Return Port | 5/8th x 18 Flare (Located Closest to the Input Shaft) | Reccomended Gallons Per Minute | 2.8-3.5 (3.0-4.0 if Runnig A HydraStop) |
| Reccomended Pressures | 1,100-1,250 (1200-1300 If Running a HydraStpo Also) | New Or Rebuilt Gearbox | New |
| Turn To Turn | 3.5 | Warranty | Yes |
| Prop65 | Yes | Brand | CPP 500 Series |
