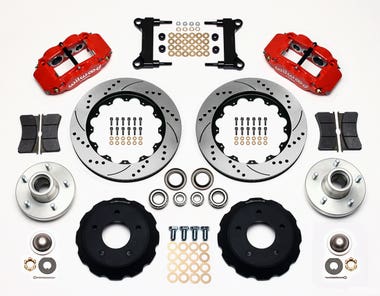

Wilwood Forged Narrow Superlite R6 Big Brake FNSL6R Front Hub Kit,14.00", Red

The Wilwood Forged Narrow Superlite R6 Big Brake FNSL6R Front Hub Kit (Part #140-10776-R) is designed for classic American muscle cars and vintage trucks with CPP drop spindles. This kit delivers improved braking authority and heat control with billet-forged six-piston callipers and 14-inch vented rotors. Each rotor measures 1.25” in thickness, providing increased surface area for better dissipation during hard braking or extended use. The dual-pattern hub fits both 5x4.75 and 5x5.00 wheel bolt circles, making it compatible with a wide range of wheel setups. The BP-10 pad compound offers a wide performance range for street and light track duty, and the system is designed for 17-inch or larger wheels. All technical benefits focus on stronger brake torque, fade resistance, and improved compatibility for suspension and tyre upgrades, ensuring consistent stopping performance.

KEY SPECIFICATIONS

- Calipers: Forged billet aluminium Superlite 6R, left/right specific
- Rotors: 14.00" diameter, 1.25" thick, vented (slotted GT or optional drilled/slotted SRP)
- Hub: Dual bolt pattern (5x4.75 and 5x5.00)
- Pad Compound: BP-10 friction material
- Minimum Wheel Size: 17”
- Inlet Fitting: 1/8-27 NPT
- Fits CPP drop spindles CP30106-2 (1963-70), CP30106-3 (1971-72), CP30106-4 (1973-87)

INSTALLATION DETAILS

Installation should be done by someone with disc brake system experience. OEM brakes must be fully removed and the spindle area cleaned before installing the new calliper brackets and hubs. Bearings should be packed with high-temperature grease. Callipers are centred using included shims and require proper torque on all fasteners with red thread lockers on specified bolts. The original rubber brake hoses will not work; Wilwood braided stainless hose kits in various lengths are recommended. After installing the hardware and brake hose, bleed the brakes carefully, then test at slow speeds before using them on the road. Follow the bedding-in process for brake pads and rotors and perform regular inspections after installation.

FACTORY FIT NOTES

- For use only with Classic Performance Products drop spindles: CP30106-2 (1963-70), CP30106-3 (1971-72), CP30106-4 (1973-87)
- Minimum required clearance between caliper and wheel: 0.080”
- Hub supports 5x4.75 and 5x5 lug patterns—confirm with wheel specs
- OEM master cylinder may be used, but check for correct brake balance
- Brake hoses not included; OEM hoses are not compatible
- Calipers are left/right specific and must be installed on matching sides
- Only use DOT 3/4/5.1 brake fluid; DOT 5 silicone is not recommended
