Protouring Kit - Stage 3, 1959-1964 Chevy FullSize

Part #
5964PTK-3
In Stock

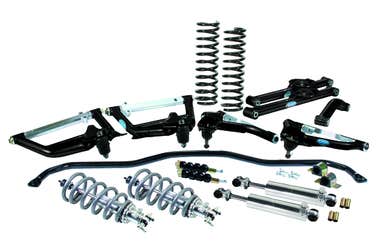

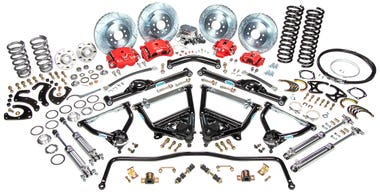

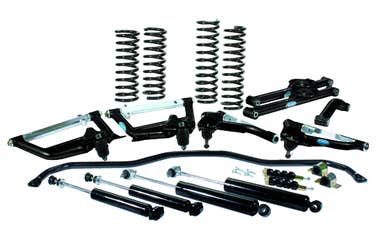

1959-64 Chevy Full Size,Tubular Arms, Front Double Adjustable Coil Overs, Rear Double Adjustable Shocks W/2" Drop Springs, Front Sway Bar, Lower Tubular Trailing Arms & Upper Adjustable Arm, 4 Wheel 11" Disc Brakes with Master & Valve Combo
  • 11in Rear Disc Brake Wheel Kit w/ E-Brakes 58-64 Chevy Full Size, 5 x 4.75
  • Front Disc Brake Kit for OEM Drum Brake Spindles for 55-64 Chevy Full Size Car, Minimum Offset, 11in Rotors, 5 x 4.75
  • Tubular Trailing Arms for 1959-1964 Chevy Impala, Fullsize, Tubular, Single Upper and Lower, Black
  • Viking Double Adjustable Shock T-Bar-Poly/Eye-Poly 13.50-21.25
  • Black Up & Lo Tube Cntrl Arm Set W/Ball Joints
  • 1in CPP Front Sway Bar Kit for 1958-1964 Chevy Impala
  • Frame Mount Chrome Flat Top Power Master Cylinder Kit

* Required Fields

Protouring Kit - Stage 3, 1959-1964 Chevy FullSize is available to buy in increments of 1

$3,960.00

Protouring Kit - Stage 3, 1959-1964 Chevy FullSize 1 5964PTK-3 CPP PTK Pro-Touring Kits $3,960.00
Protouring Kit - Stage 3, 1959-1964 Chevy FullSize

In stock

$3,960.00

The Pro-Touring Kit - Stage 3 for 1959-64 Chevy Fullsize delivers superior performance and handling with a complete suspension and braking upgrade. The kit includes tubular control arms, front double adjustable coil overs, rear double adjustable shocks with 2" drop springs, front sway bar, lower tubular trailing arms, and upper adjustable arms. For braking, it features 4-wheel 11" disc brakes along with a master cylinder and valve combo for precise stopping power. Designed to enhance both ride quality and stability, this kit incorporates patented D-Spec heat-resistant bushings, ensuring long-lasting durability and optimal performance under extreme conditions.
More Information
Product Name Protouring Kit - Stage 3, 1959-1964 Chevy FullSize SKU 5964PTK-3
Bolt Pattern 5x4.75 Front Caliper Piston Qty 1
Front Spindle Included No Master Cylinder Bore Size 1.125
Master Cylinder Finish Chrome Wheel Offset 0.625
Rear Caliper Piston Diameter 2.125 Rear Caliper Piston Qty 1
Rear Rotor Diameter 11 Front Caliper Piston Diameter 2.95
Master Cylinder Included Yes Spanner Wrench Included Yes
Thrust Bearing Kit Included Yes Front Height Adjustment Max -2.5
Front Height Adjustment Min -1 Front Coil Over Included Yes
Front Sway Bar 1 Inch Sway Bar Tubular Control Arms Included Yes
Front Sway Bar Included Yes Rear Coil Springs Included Yes
Rear Sway Bar Included No Front Brake Kit Included Yes
Default Front Spring Double Adjustable Coil Over Kit Default Rear Spring 1.5" Rear Drop Spring
Default Front Sway Bar 1" Sway Bar Front Spring Choices 350LB (LS With Aluminum Block), 450 LB (Small Block or LS With Iron Block), 550LB (Big Block)
Rear Spring Choices 1.5" Rear Drop Spring, Stock Height Rear Spring Caliper Color Choices Powder Coated Black, Powder Coated Red
Default Caliper Color None-Caliper Upgrade Available Prop65 Yes
Brand CPP PTK Front Rotor Diameter 11
Write Your Own Review
Only registered users can write reviews. Please Sign in or create an account
Customer Questions
Does this kit come with brakes?
Yes, all our Stage III Pro Touring Kits include four wheel disc brakes with drilled and slotted rotors. Note: these brakes will require 15” or bigger wheels.
Did you find what you were looking for?

This kit includes:

  1. Coil Over
  2. P/N: 5564COK-2A350

    • Description: 350 Lb (LS Aluminum Block)
    • Quantity: 1
  3. P/N: 5564COK-2A450

    • Description: 450 Lb (Small Block, or LS Iron Block)
    • Quantity: 1
  4. P/N: 5564COK-2A550

    • Description: 550 Lb (Big Block)
    • Quantity: 1
  5. Fixed
  6. P/N: 5864RWBK-E-UG

    • Description: 11in Rear Disc Brake Wheel Kit w/ E-Brakes 58-64 Chevy Full Size, 5 x 4.75
    • Quantity: 1
  7. P/N: 5564WBK-S0-UG

    • Description: Front Disc Brake Kit for OEM Drum Brake Spindles for 55-64 Chevy Full Size Car, Minimum Offset, 11in Rotors, 5 x 4.75
    • Quantity: 1
  8. P/N: 5964RTCA-ULK-SB

    • Description: Tubular Trailing Arms for 1959-1964 Chevy Impala, Fullsize, Tubular, Single Upper and Lower, Black
    • Quantity: 1
  9. P/N: B220

    • Description: Viking Double Adjustable Shock T-Bar-Poly/Eye-Poly 13.50-21.25
    • Quantity: 2
  10. P/N: CPP5864TCA-SKB

    • Description: Black Up & Lo Tube Cntrl Arm Set W/Ball Joints
    • Quantity: 1
  11. P/N: CPP706

    • Description: 1in CPP Front Sway Bar Kit for 1958-1964 Chevy Impala
    • Quantity: 1
  12. P/N: MCAPVDBU-118C

    • Description: Frame Mount Chrome Flat Top Power Master Cylinder Kit
    • Quantity: 1
  13. Rear Springs
  14. P/N: RCS661-D

    • Description: 1.5in Drop Springs
    • Quantity: 1
  15. P/N: RCS661-S

    • Description: Stock Height
    • Quantity: 1
