Protouring Kit - Stage 4, 1959-1964 Chevy FullSize
Part #
5964PTK-4
In Stock

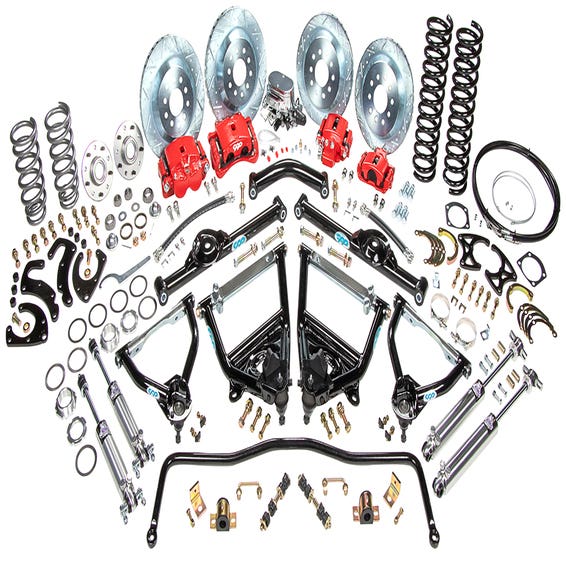

1959-64 Chevy Full Size,Tubular Arms, Front Double Adjustable Coil Overs, Rear Double Adjustable Shocks W/2" Drop Springs, Front Sway Bar, Lower Tubular Trailing Arms & Upper Adjustable Arm, 4 Wheel Big Brakes with Master & Valve Combo
The Pro-Touring Kit - Stage 4 for the 1959-64 Chevy Fullsize includes a comprehensive upgrade for performance and handling. This kit features tubular arms, front double adjustable coilovers with a spanner wrench and thrust bearing kit for precise adjustments, rear double adjustable shocks with 2" drop springs, a front sway bar, lower tubular trailing arms, and an upper adjustable arm. It also comes with 4-wheel big brakes, including 13" front disc brakes and 12" rear disc brakes, along with a master cylinder and valve combo for seamless integration and superior braking performance. This complete package provides enhanced handling, stability, and stopping power, perfect for your Chevy Fullsize. Mimnium 17" wheel needed.
| Product Name | Protouring Kit - Stage 4, 1959-1964 Chevy FullSize | SKU | 5964PTK-4 |
| Bolt Pattern | 5x4.75 | Front Caliper Piston Qty | 2 |
| Front Spindle Included | No | Master Cylinder Bore Size | 1.125 |
| Master Cylinder Finish | Chrome | Wheel Offset | 625 |
| Rear Caliper Piston Diameter | 2 | Rear Caliper Piston Qty | 1 |
| Rear Rotor Diameter | 12 | Front Caliper Piston Diameter | 52 |
| Master Cylinder Included | Yes | Spanner Wrench Included | Yes |
| Thrust Bearing Kit Included | Yes | Front Height Adjustment Max | -2.5 |
| Front Height Adjustment Min | -1 | Front Coil Over Included | Yes |
| Front Sway Bar | 1 Inch Sway Bar | Tubular Control Arms Included | Yes |
| Front Sway Bar Included | Yes | Rear Coil Springs Included | Yes |
| Rear Sway Bar Included | No | Front Brake Kit Included | Yes |
| Default Front Spring | Double Adjustable Coil Over Kit | Default Rear Spring | 1.5" Rear Drop Spring |
| Default Front Sway Bar | 1" Sway Bar | Front Spring Choices | 350LB (LS With Aluminum Block), 450 LB (Small Block or LS With Iron Block), 550LB (Big Block) |
| Rear Spring Choices | 1.5" Rear Drop Spring, Stock Height Rear Spring | Caliper Color Choices | Powder Coated Black, Powder Coated Red |
| Default Caliper Color | Powder Coated Red | Prop65 | Yes |
| Brand | CPP PTK | Front Rotor Diameter | 13 |
Write Your Own Review
Customer Questions
This kit includes:
-
Coil Over
-
P/N: 5564COK-2A350
- Description: 350 Lb (LS Aluminum Block)
- Quantity: 1
-
P/N: 5564COK-2A450
- Description: 450 Lb (Small Block, or LS Iron Block)
- Quantity: 1
-
P/N: 5564COK-2A550
- Description: 550 Lb (Big Block)
- Quantity: 1
-
Fixed
-
P/N: 5964RTCA-ULK-SB
- Description: Tubular Trailing Arms for 1959-1964 Chevy Impala, Fullsize, Tubular, Single Upper and Lower, Black
- Quantity: 1
-
P/N: CPP5864TCA-SKB
- Description: Black Up & Lo Tube Cntrl Arm Set W/Ball Joints
- Quantity: 1
-
P/N: CPP706
- Description: 1in CPP Front Sway Bar Kit for 1958-1964 Chevy Impala
- Quantity: 1
-
P/N: MCAPVDBU-118C
- Description: Frame Mount Chrome Flat Top Power Master Cylinder Kit
- Quantity: 1
-
P/N: OPTION-RS2-DA
- Description: Dual Adjustable Rear Shocks
- Quantity: 1
-
Front Caliper Choice
-
P/N: 5564WBK-0P13R
- Description: Red Calipers
- Quantity: 1
-
P/N: 5564WBK-0P13
- Description: Black Calipers
- Quantity: 1
-
Rear Caliper Choice
-
P/N: 5864RWBK-P12R
- Description: Red Calipers
- Quantity: 1
-
P/N: 5864RWBK-P12
- Description: Black Calipers
- Quantity: 1
-
Rear Springs
-
P/N: RCS661-D
- Description: 1.5in Drop Springs
- Quantity: 1
-
P/N: RCS661-S
- Description: Stock Height
- Quantity: 1
